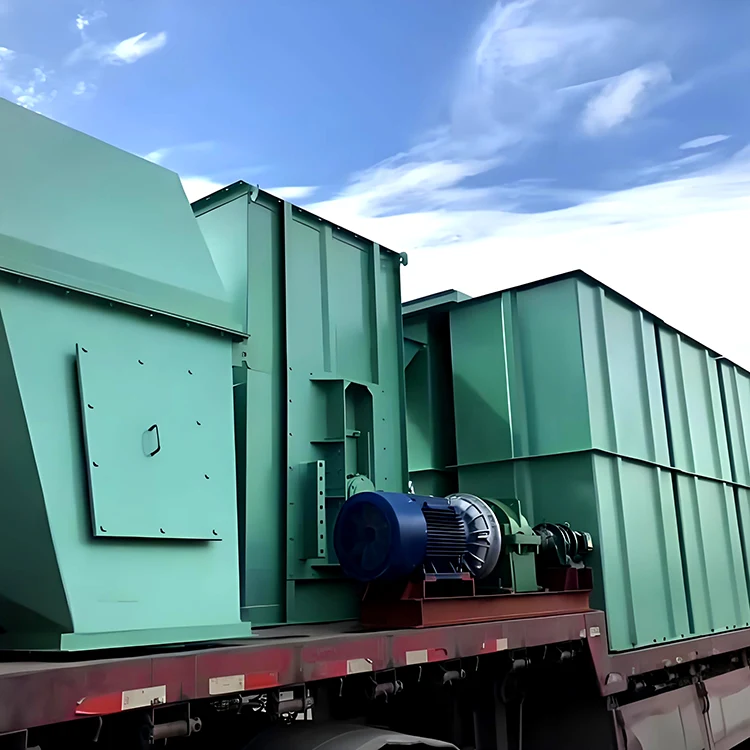

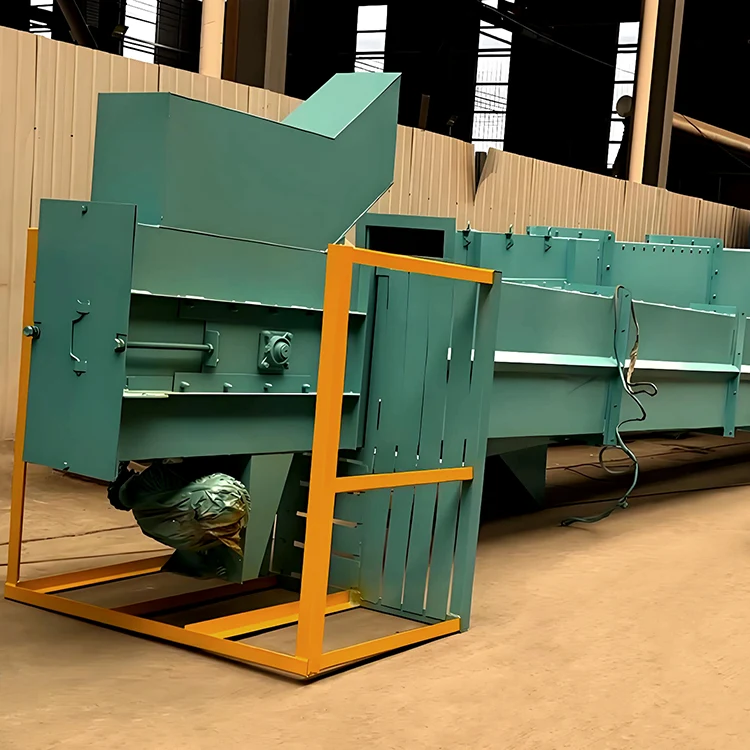

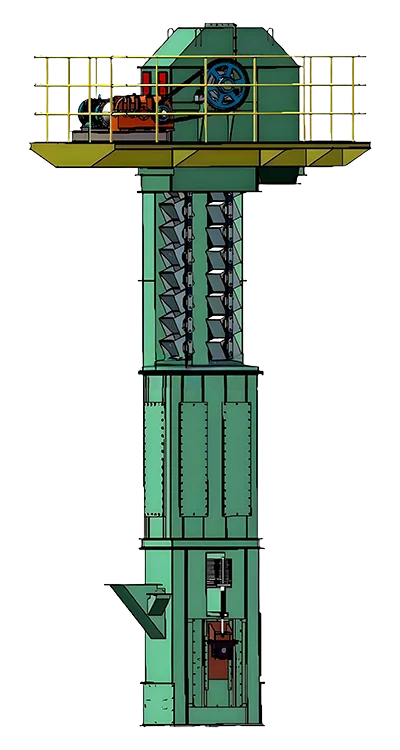

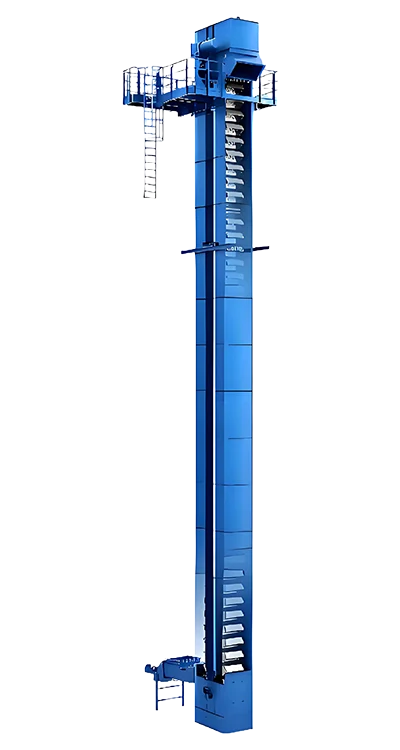

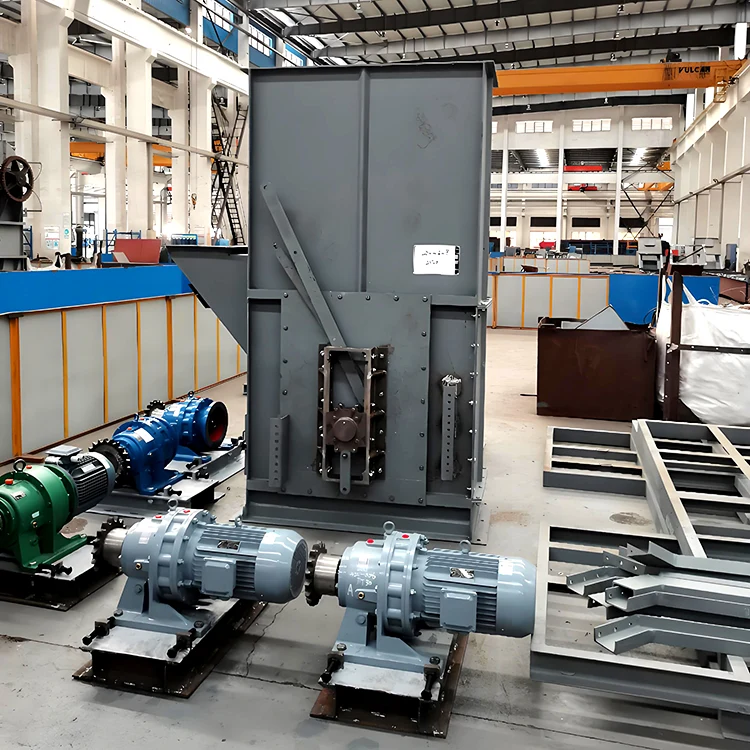

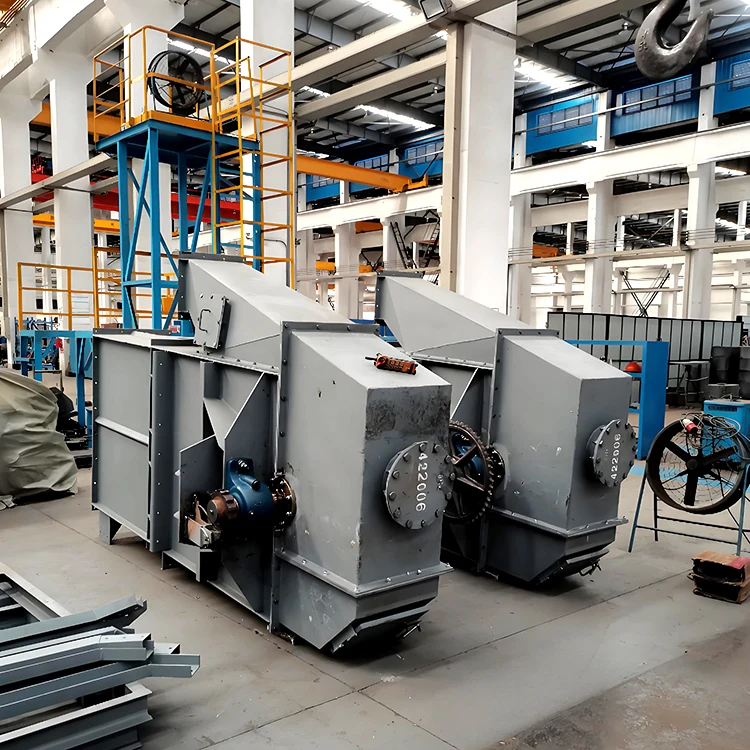

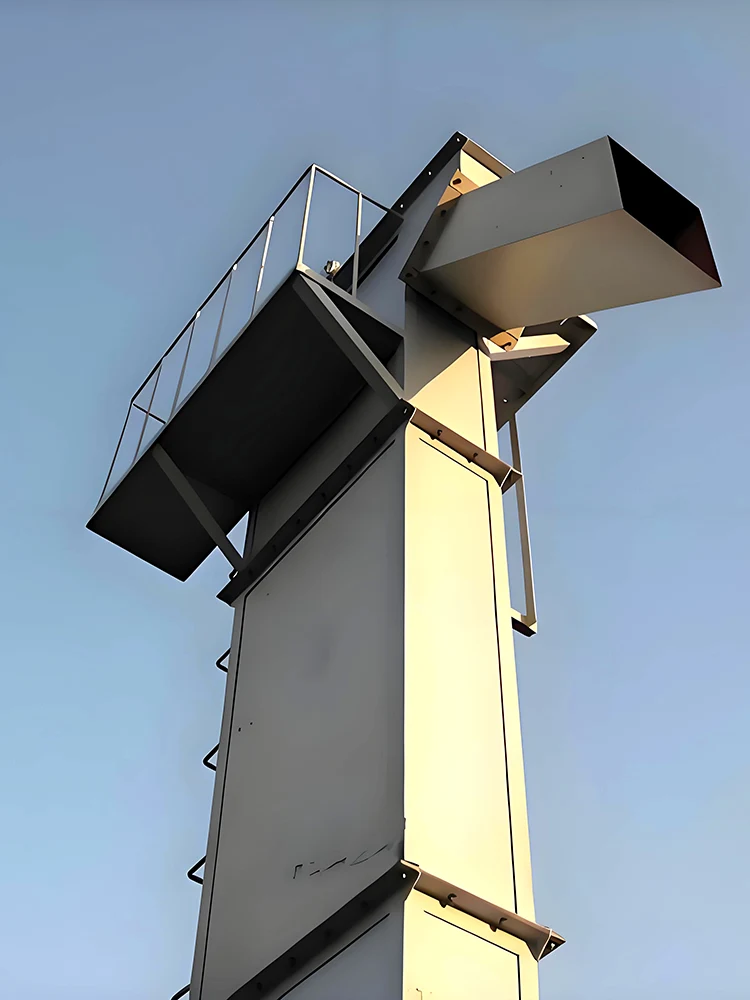

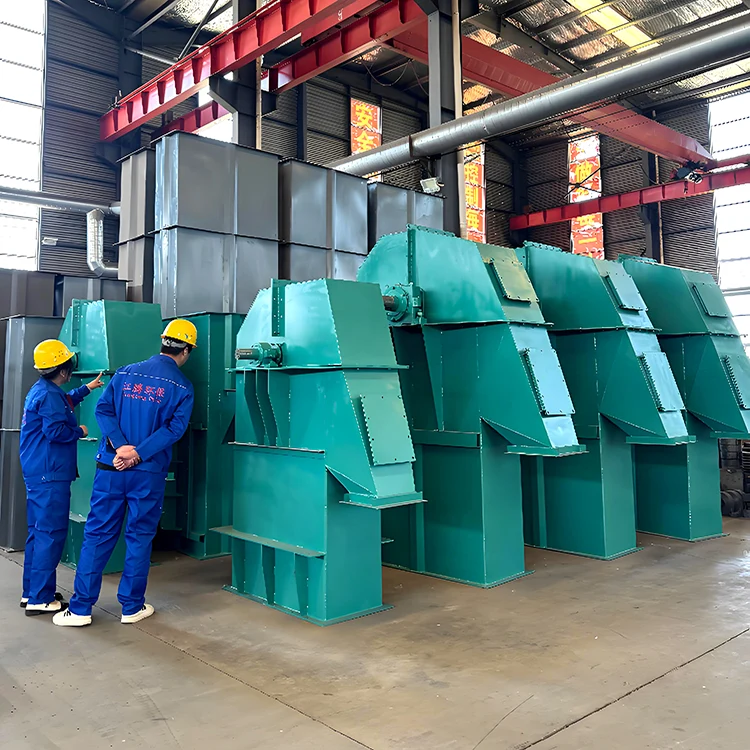

Ring Chain Bucket Elevator

The Ring Chain Bucket Elevator is reliable, efficient, and requires minimal maintenance. As a trusted manufacturer, Jiangteng offers customized solutions tailored to specific industry requirements; our elevators are capable of conveying a wide range of bulk materials—including ores, cement, grains, and fertilizers—within a fully enclosed, dust-proof system.

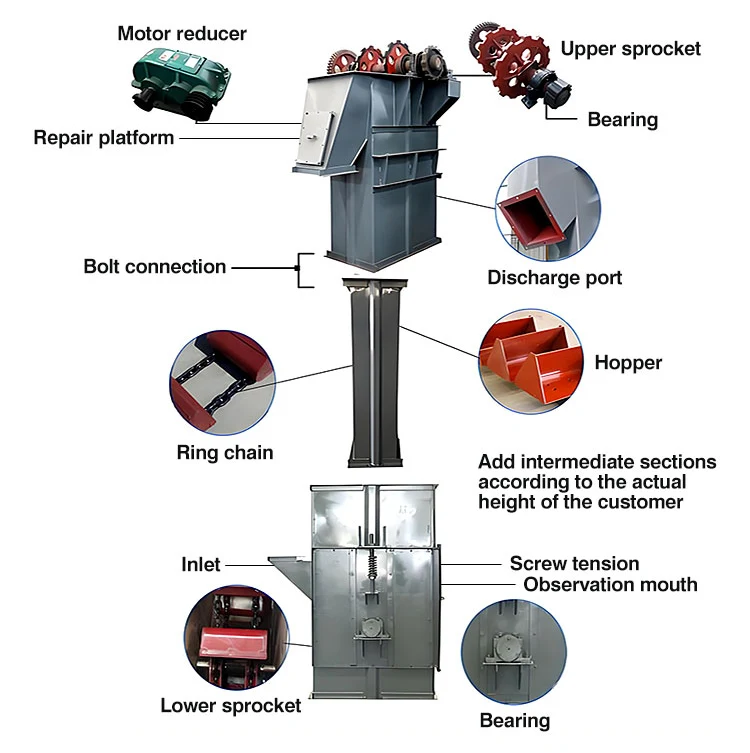

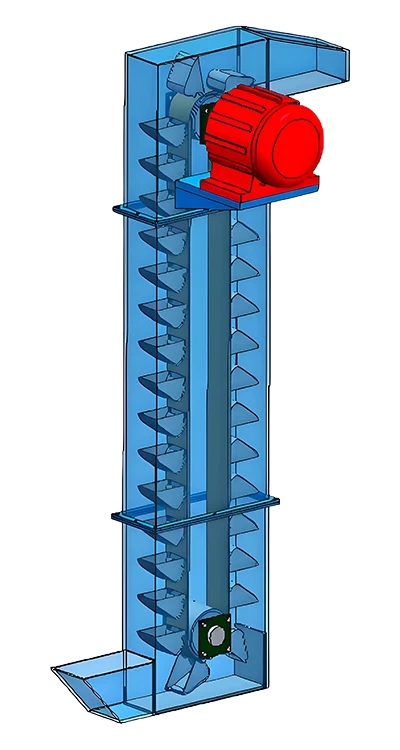

How Does the Ring Chain Bucket Elevator Operate Efficiently?

In designing this equipment, our primary focus has always centered on maximizing efficiency and minimizing material loss.

1. Intelligent Loading

Tailoring our approach to the specific characteristics of different materials, Jiangteng employs either a scooping method or an inflow-style loading technique. This ensures that the buckets are filled to capacity, effectively eliminating empty loads and material backflow at the source, thereby optimizing the utilization of every unit of electricity consumed.

2. Smooth Lifting

Contained within a robust, sealed casing, materials are lifted smoothly by a specially reinforced ring chain.

Throughout the entire process, virtually no dust leakage occurs; this not only protects the environment but also safeguards the health of on-site workers, ensuring full compliance with environmental regulations.

3. Precise Discharging

Upon reaching the top, the buckets discharge their contents precisely into the outlet chute, driven by either centrifugal force or gravity.

The unique bucket design and the fluid discharge trajectory effectively prevent clogging, thereby ensuring the continuous and uninterrupted operation of the production line.

This closed-loop process delivers a comprehensive set of advantages—including low drive power requirements, minimal energy waste, and high conveying efficiency—which directly translates into significant long-term operational cost savings for you.

Equipment Parameters

Note: The conveying capacities listed above serve as a reference range; actual performance depends on material characteristics and the type of hopper utilized (medium-deep or deep). We offer customized hopper and chain link solutions designed to handle special materials, such as those that are wet, high-temperature, or corrosive.

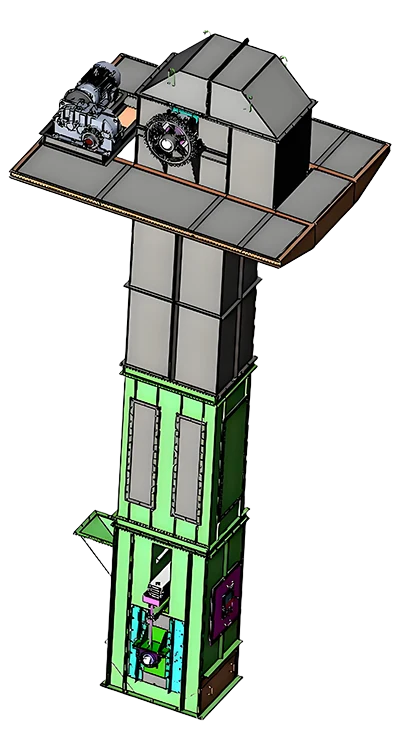

How Does Jiangteng's Unique Design Benefit You?

Why Choose Jiangteng’s Ring Chain Bucket Elevator?

1. Enhanced Throughput

Compared to older belt-type elevators, our Ring Chain Bucket Elevator boosts conveying capacity by up to 30%.

A stable lifting speed (0.5–2 m/s) ensures your production line operates continuously at high speeds, effortlessly meeting the demands of large-scale production.

2. Exceptional Durability

Reinforced by a core ring chain and high-strength PE or stainless steel buckets, the machine’s overall service life is 1 to 2 times longer than the market average.

This represents an investment focused on long-term value, resulting in lower average annual equipment depreciation costs.

3. Minimal Maintenance

Jiangteng employs a modular design that makes routine inspections and component replacements quick and simple.

The entire machine features only two main lubrication points, requiring routine lubrication just once a month—saving significantly on labor and maintenance supply costs.

4. Tailored Solutions

We offer customized solutions, including high-temperature models (withstanding over 200°C), corrosion-resistant models (featuring 304/316 stainless steel), and explosion-proof models.

No matter how unique your materials or how harsh your operating conditions may be, we are confident in our ability to provide a suitable solution.

5. Energy Efficiency

Equipped as standard with IE3 high-efficiency energy-saving motors, the system boasts a transmission efficiency exceeding 95%. For equivalent conveying tasks, energy consumption is reduced by approximately 15% compared to traditional equipment, resulting in substantial annual electricity savings.

FAQ

Q1: Is the Ring Chain Bucket Elevator suitable for conveying my specific materials?

A: It is specifically designed for bulk granular or powdery materials, such as ores, grains, fertilizers, cement, and more. Generally, it is suitable provided that the material particle size is ≤ 100mm and the moisture content is ≤ 15%.

For special materials (e.g., sticky, high-temperature, or corrosive substances), we offer customization services for buckets and construction materials.

Q2: How can I maximize the equipment's service life and minimize maintenance costs?

A: There are three key points:

① Avoid prolonged operation under overload conditions;

② Regularly (every two months) apply specialized lithium-based grease to the chain;

③ Inspect the tension of the ring chain once per quarter.

By following the "Maintenance Manual" we provide, your equipment will remain in optimal condition.

Q3: If I encounter issues with material discharge, what are the common causes?

A: The most common causes are excessive material moisture leading to adhesion, or blockages caused by foreign objects at the discharge outlet.

Recommendations:

① Regularly clean the discharge outlet;

② For wet materials, consider customizing our anti-stick buckets;

③ Contact us to adjust the bucket tilt angle.

Q4: Can the lifting height and equipment model be customized?

A: Absolutely! We offer customization for lifting heights ranging from 5 meters to 100 meters.

Please provide your available site dimensions and desired throughput capacity; our engineers will perform the necessary calculations and recommend the most suitable model, chain strength, and motor power configuration for your needs.

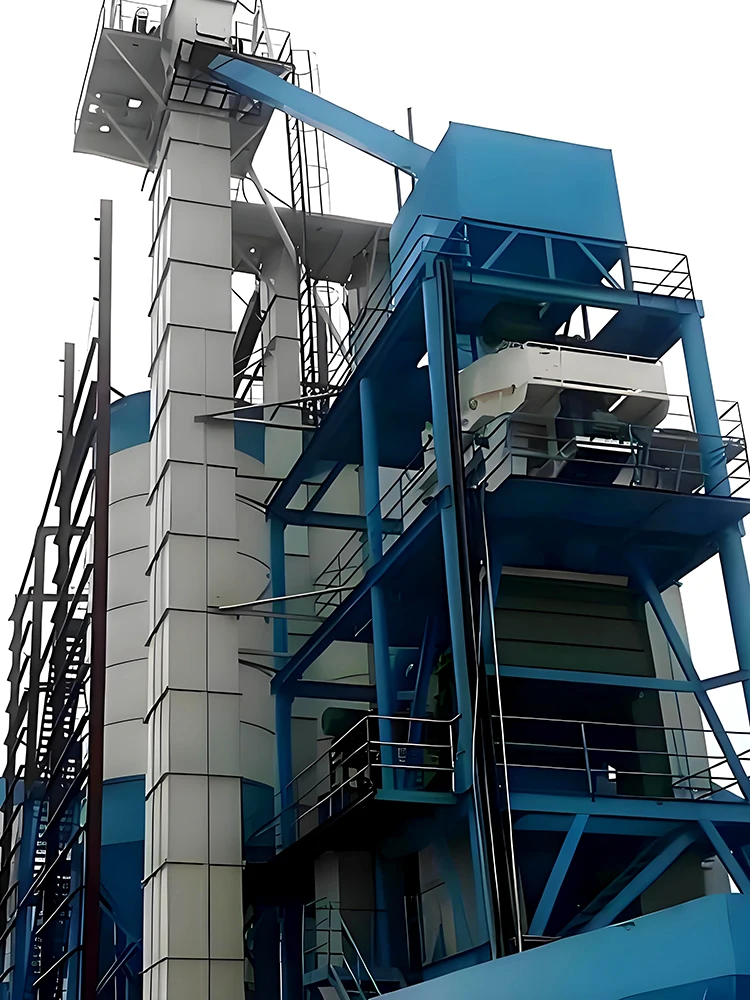

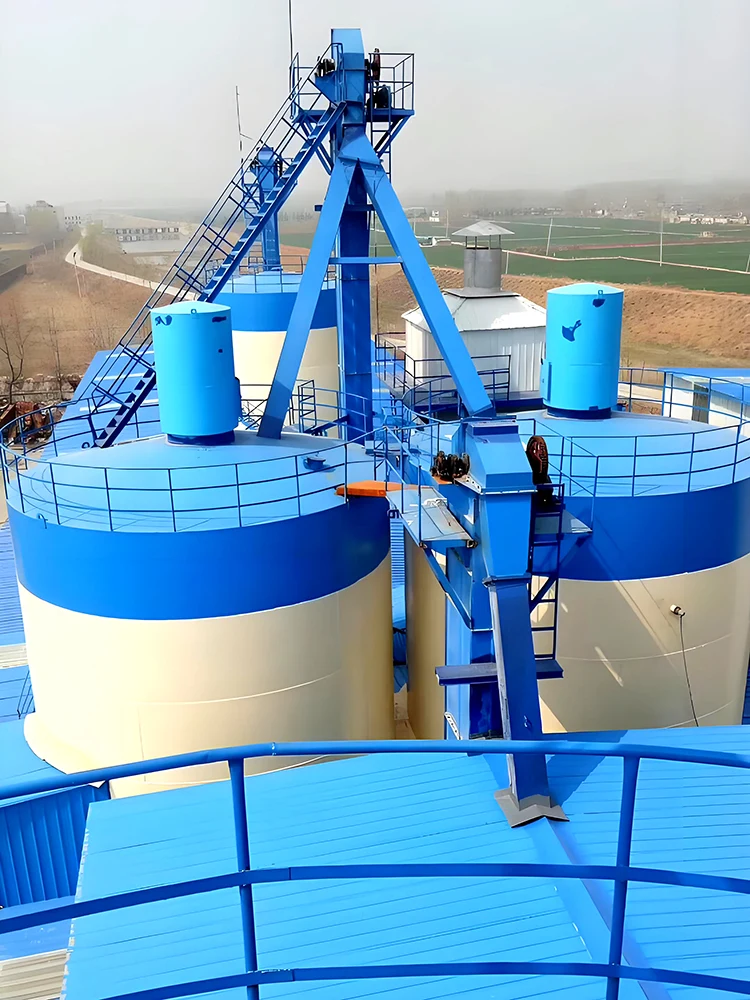

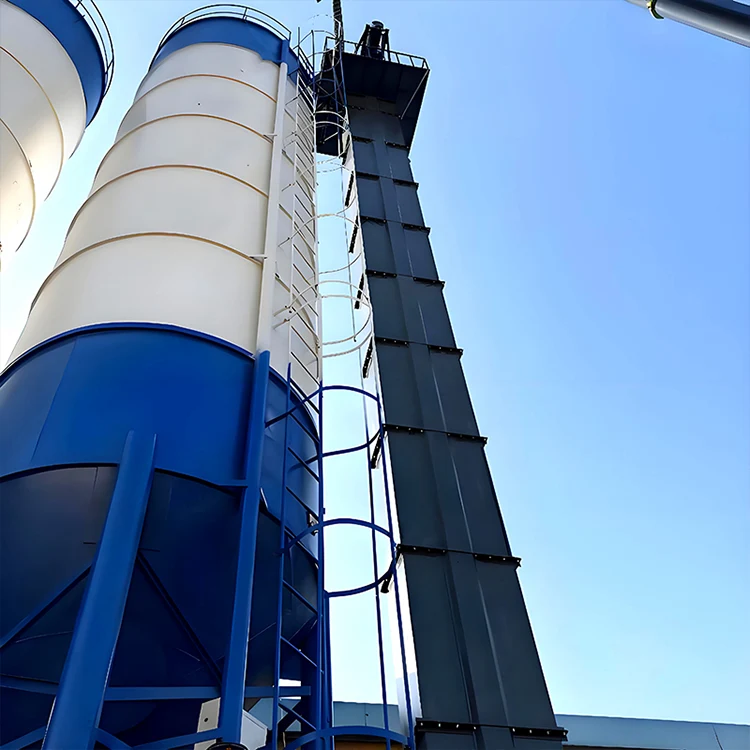

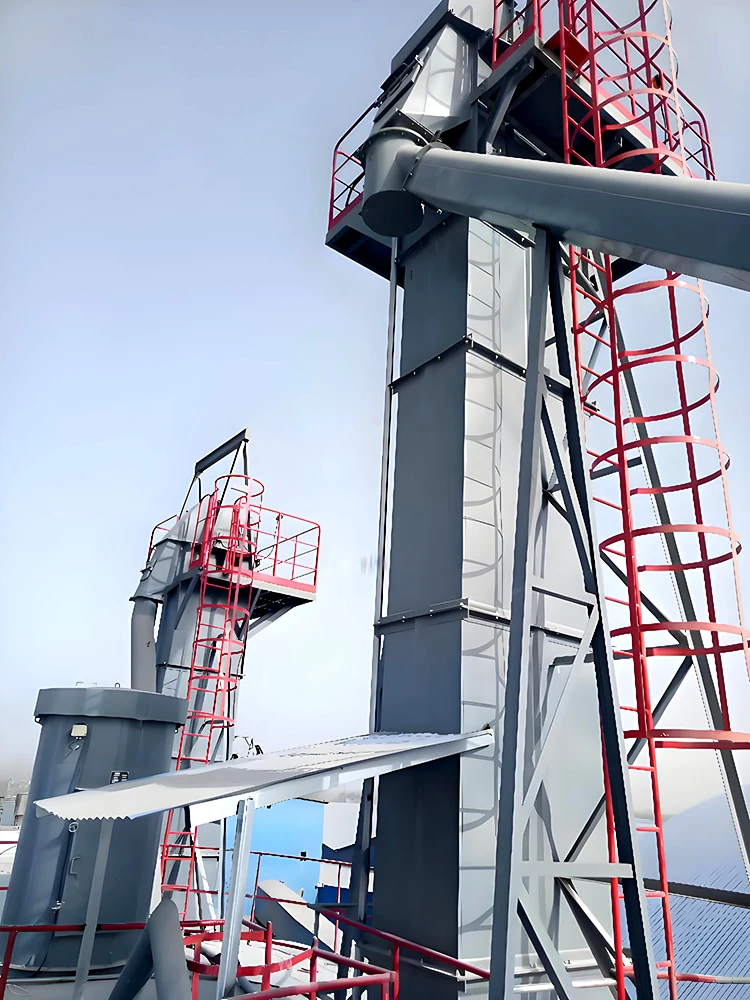

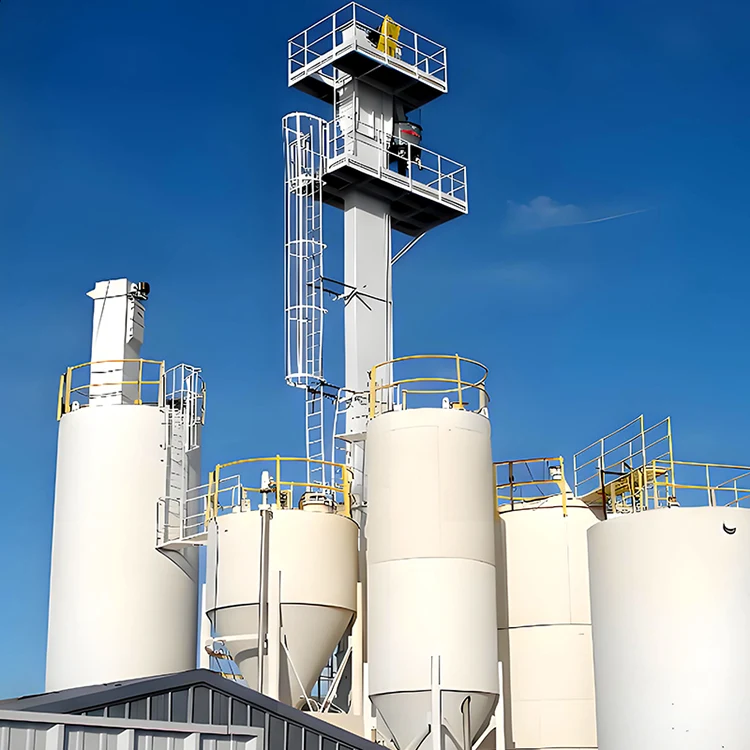

Industry Applications

Mining Industry: Reliably conveys materials such as iron ore and pulverized coal, with lifting heights reaching up to 60 meters; serves as a backbone component in mineral processing and crushing lines.

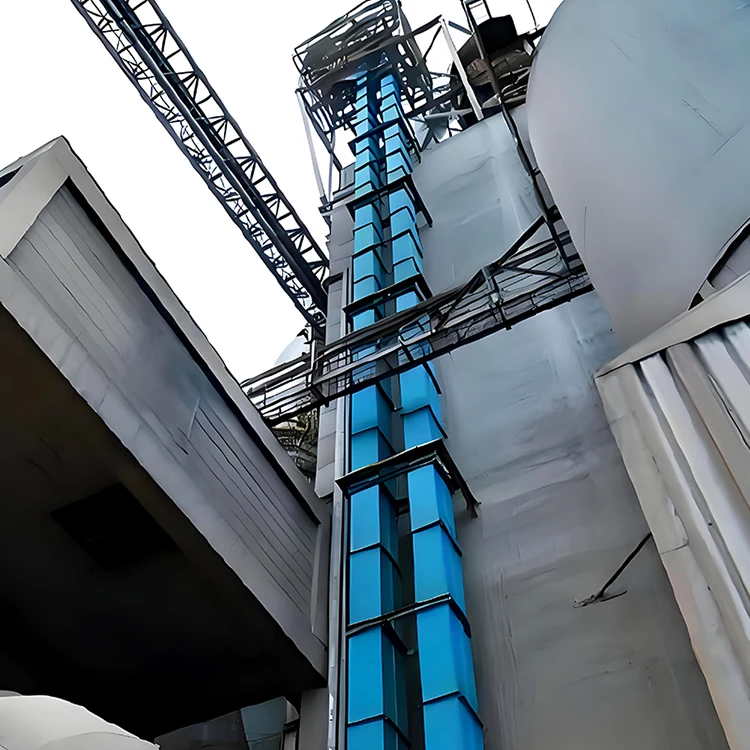

Building Materials & Cement Industry: From raw meal to clinker, efficiently elevates cement, limestone, and aggregates, ensuring continuous production in kiln lines.

Chemical & Fertilizer Industry: Features a corrosion-resistant design to safely transport corrosive materials such as PVC granules, fertilizers, and soda ash.

Grain Processing Industry: Utilizes food-grade stainless steel buckets to ensure hygienic, contamination-free transport of grains, animal feed, and flour.

Metallurgy Industry: High-temperature-resistant equipment capable of withstanding furnace slag temperatures exceeding 200°C, ensuring uninterrupted metallurgical processes.

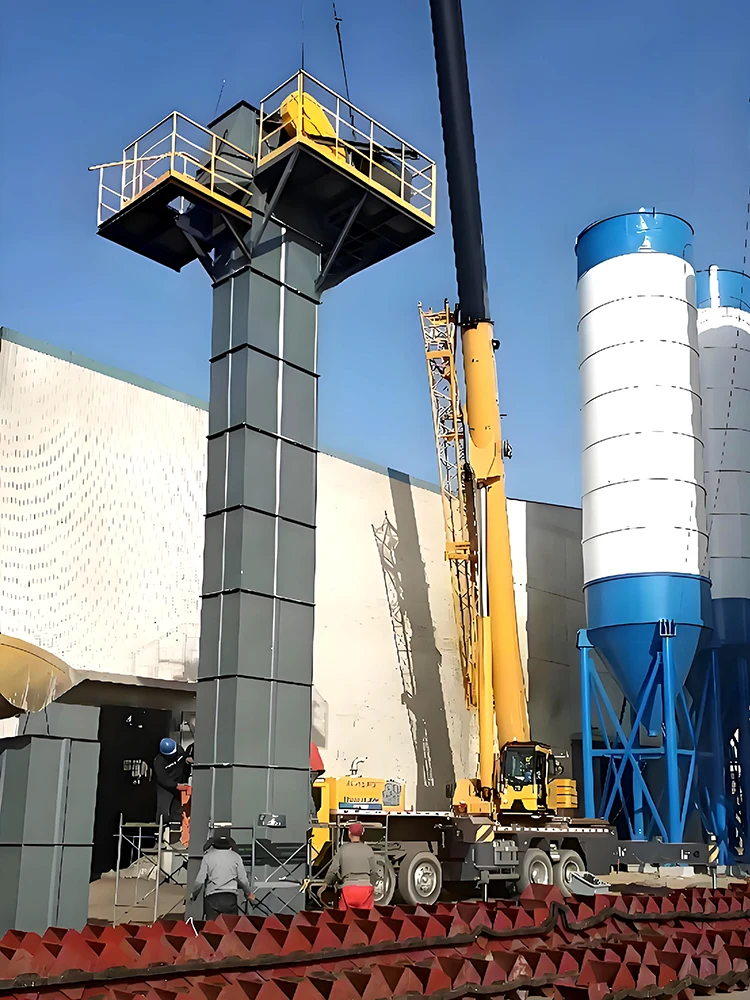

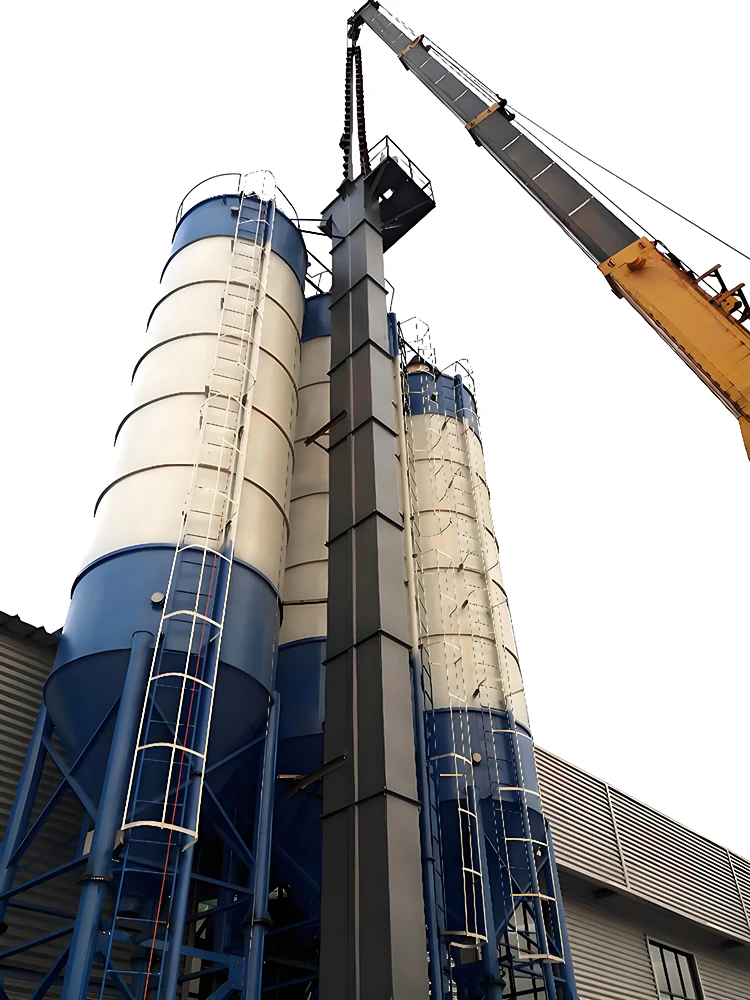

Installation and Maintenance Support

We provide clear installation diagrams and video tutorials.

Key points include: ensuring the concrete foundation is level and secure; calibrating for vertical alignment during installation in a bottom-up sequence (with a tolerance of <10 mm); and properly tensioning the chains after installation.

Upon delivery of the equipment, Jiangteng will provide a detailed Operation and Maintenance Manual. Under normal operating conditions, maintenance tasks typically involve only periodic inspections for wear and tear, as well as keeping critical components properly lubricated.

We are committed to providing timely after-sales technical support to ensure your equipment operates efficiently at all times.
