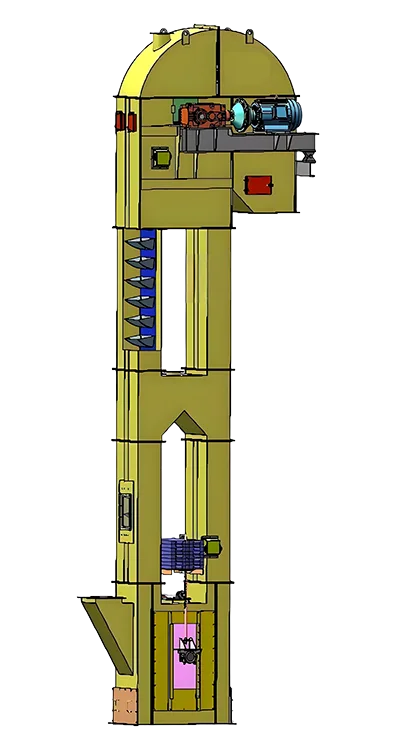

Belt Bucket Elevator

Jiangteng is a China-based manufacturer of Belt Bucket Elevators. Our equipment is highly efficient, reliable, and engineered to perform robustly even under the most demanding operating conditions.

We utilize high-quality drive drums, wear-resistant traction belts, and optimally spaced buckets to ensure ease of operation and simplified maintenance.

Core Types

General-Purpose Economical Type: Utilizes a high-strength fiber-core belt, capable of lifting heights up to 40 meters; suitable for most standard lifting applications, offering exceptional cost-effectiveness.

Heavy-Duty High-Strength Type: Features a steel-wire-rope-reinforced belt, capable of lifting heights up to 80 meters; specifically designed for operating conditions requiring significant lifting heights, heavy loads, and continuous operation, offering greatly enhanced durability.

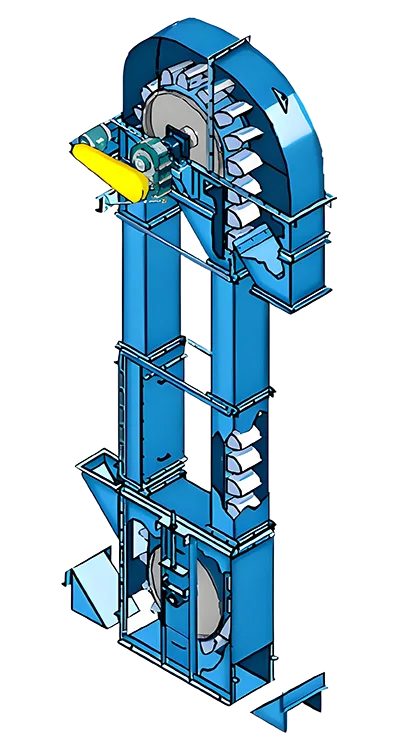

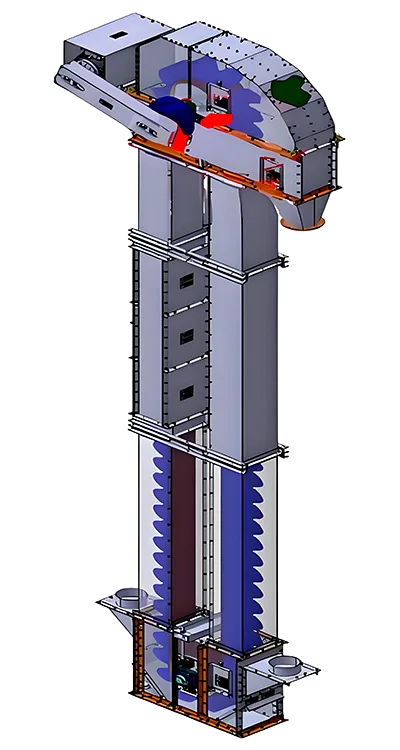

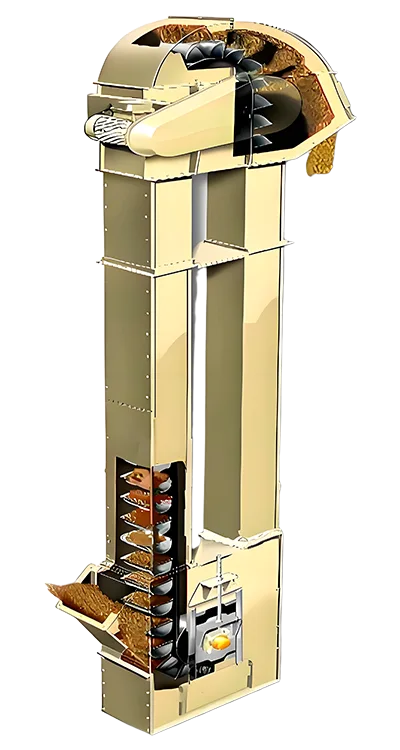

Working Principle

Jiangteng’s Belt Bucket Elevator operates on an intuitive and highly efficient working principle, guiding materials through the following seamless process:

Smooth Feeding: Materials flow uniformly from the lower inlet into the buckets; our inflow-style feeding design effectively minimizes dust generation and material breakage.

Stable Lifting: Supported by precisely calibrated idlers, the high-strength conveyor belt ascends steadily, transporting materials vertically or at an incline to the designated height. The fully sealed casing prevents any dust leakage throughout the process.

Complete Discharge: Upon reaching the top, materials are completely and cleanly discharged into the outlet chute—driven by the combined forces of centrifugal force and gravity—resulting in virtually zero back-spillage and maximizing lifting efficiency.

Rapid Return: The empty buckets swiftly return to the bottom along with the conveyor belt, initiating the next cycle and ensuring continuous, uninterrupted operation.

Key Specifications

Why choose us for customization?

Our engineers will comprehensively evaluate your material characteristics, required flow rate, total lift height, and site constraints to recommend the most energy-efficient and cost-effective model and configuration for your needs.

Why Choose Jiangteng's Belt Bucket Elevator?

1. Significant Energy Savings

The Belt Bucket Elevator utilizes a gravity-induced discharge mechanism and a dense bucket arrangement, ensuring smooth material lifting with zero backflow.

Compared to traditional chain-type elevators, our equipment achieves average energy savings of over 30%, resulting in significantly lower electricity costs during long-term operation.

2. Extended Service Life

Key components—such as the conveying medium—feature either plate chains or high-strength steel-cord rubber belts specifically engineered for wear-resistant applications. Under normal operating conditions and proper maintenance, the core traction components can last for over five years, thereby reducing the frequency of spare parts replacement and lowering the total cost of ownership.

3. Guaranteed Continuous Production

Built upon proven design principles and precision manufacturing, the complete unit boasts an Average Mean Time Between Failures (MTBF) exceeding 30,000 hours, minimizing the occurrence of unexpected downtime.

4. Fully Enclosed and Dust-Proof

Jiangteng employs a fully enclosed design for the machine body to effectively control dust emissions. This not only safeguards worker health and ensures compliance with environmental regulations but also reduces material loss and alleviates the burden of site cleanup.

5. Compact Structure

Compared to other elevators with equivalent conveying capacities, our design is more space-efficient. It integrates seamlessly into your existing plant layout, thereby saving valuable production floor space.

6. Simplified Maintenance

We have incorporated convenient inspection doors and observation windows into the design. Routine checks and maintenance require no complex tools, and standard upkeep can be performed by a single person, thereby minimizing the demand on production personnel resources.

Application Fields

Our products have been successfully implemented across numerous industries worldwide:

Building Materials & Cement: Efficiently conveys cement, raw meal, and fly ash, supporting the operations of mixing plants and cement factories.

Agriculture & Grain: Gently and securely elevates materials such as wheat, corn, and soybeans, ensuring grain safety and purity.

Mining & Metallurgy: Reliably conveys ores, pulverized coal, and coke; high-temperature-resistant models are available to accommodate environments up to 120°C.

Chemicals & Plastics: Transports materials such as fertilizers and resin pellets, with corrosion-resistant options available.

Environmental Protection & Energy: Used for elevating materials such as Refuse-Derived Fuel (RDF) and biomass pellets.

FAQ

Q: Is this belt elevator truly suitable for my specific materials?

A: It is widely applicable to bulk materials with moderate density and a particle size typically under 50mm—such as grains, fertilizers, cement, sand and gravel, mineral powders, and more.

If your materials have special characteristics (e.g., high temperature, high abrasiveness, or a tendency to generate dust), please inform us; we will provide tailored solutions regarding the hopper and belt materials to meet your specific needs.

Q: How can I ensure the equipment operates stably over the long term and maximize its service life?

A: In addition to the high quality inherent in the equipment itself, proper operation and regular maintenance are key.

We recommend: regularly checking the belt tension, removing foreign objects, and performing lubrication according to the exclusive maintenance schedule we provide.

Upon purchase, you will receive a complete digital maintenance manual and video guides.

Q: Can the lifting height and throughput capacity be fully customized to my exact requirements?

A: Absolutely—this is precisely where our expertise lies.

Whether you require a lifting height ranging from 5 to 80 meters, or a conveying capacity ranging from a dozen to several hundred cubic meters per hour, we can provide a comprehensive, one-stop customized design solution based on your site blueprints and process requirements. This includes tailoring specifications such as the angles of the inlet and outlet ports, as well as the positioning of the drive unit.

Q: What are your advantages compared to other types of elevators?

A: Compared to ring-chain elevators, this belt elevator offers smoother operation, lower noise levels, and reduced energy consumption.

Compared to plate-chain elevators, it demonstrates greater adaptability to a wider variety of materials and requires simpler maintenance.

We provide a solution that strikes the optimal balance between efficiency, reliability, and cost-effectiveness.

Jiangteng Services

Professional Installation Guidance: We provide clear installation drawings and instructional videos, and offer online support to assist your team in completing the installation—ensuring that critical steps such as foundation leveling, casing sealing, and hopper alignment are executed with precision.

Personalized Selection Support: Unsure which configuration best suits your needs? Simply provide us with samples of your materials, your projected output, and your site conditions; our technical team will provide you with a complimentary preliminary equipment selection proposal and layout recommendations within 24 hours.

Long-Term Maintenance Partnership: Equipment delivery is not the end of our journey together. We provide easy-to-follow maintenance schedules and maintain an extensive inventory of spare parts, ensuring that you receive prompt support whenever needed and that your equipment remains in optimal condition throughout its entire service life.
