Dust Collector Rotary Valve
The Dust Collector Rotary Valve is a critical control device in automated production processes, designed by the specialist manufacturer Jiangteng for demanding industrial applications. Through precise rotary control, it enables the reliable conveying, distribution, and shut-off of various media, including gases, powders, granules, and corrosive liquids.
The Dust Collector Rotary Valve, designed and manufactured by Jiangteng, features excellent sealing performance and precise regulation capabilities. It operates reliably under conditions of extreme temperature, high pressure, and strong corrosion. Widely used in sectors such as chemicals, energy, environmental protection, food processing, and pharmaceuticals, it enhances production continuity, safety, and energy efficiency.
Working Principle
The Dust Collector Rotary Valve operates by rotating the valve core via an electric motor or pneumatic actuator. Material flows through when the valve core passage aligns with the inlet and outlet; the flow rate can be precisely controlled by adjusting the rotation angle; and a tight seal is achieved when the valve core fits snugly against the seat in the closed position.
Key Features:
Eccentric design: Ensures a tighter seal and reduced wear.
Versatile sealing options: Materials such as PTFE, fluoroelastomer, or metal composite seals can be selected based on the properties of the handled material.
Optional intelligent control: Supports closed-loop flow regulation, status monitoring, and remote operation.
Why Choose Our Rotary Valves for Dust Collectors?
1. Suitable for Extreme Operating Conditions
Temperature Range: Withstands temperatures from -196°C to 750°C, covering applications from cryogenic storage to high-temperature smelting.
Pressure Capability: Supports pressures from 1.6 MPa to 40 MPa, making it suitable for high-pressure scenarios such as hydrogen storage/transport and deep-sea oil and gas operations.
Corrosion-Resistant Materials: Offers options such as special alloys and fluoropolymer linings to handle over 200 types of media, including acids, alkalis, and solvents.
2. High-Precision Control
Flow regulation precision reaches ±0.2%–±0.3% with a response time of ≤0.5 seconds, meeting the low-flow requirements of industries like fine chemicals and semiconductors.
Supports pneumatic or electric actuation and integrates with PLC controls and Modbus/Profinet communication protocols, enabling remote monitoring, self-diagnostics, and system interlinking.
3. Low Leakage Rate
Features a composite sealing structure and dual-seal design with a leakage rate of ≤1×10⁻⁷ MPa·m³/s, preventing media leakage and cross-contamination.
Tested to maintain zero leakage after 100,000 operating cycles; ideal for cleanroom and hazardous environments requiring strict sealing performance.
4. Long-Life Design
Core components utilize 5-axis precision machining and laser cladding processes, enhancing wear resistance and ensuring smoother operation. Mean Time Between Failures (MTBF) exceeds 15,000 hours, offering greater cost-efficiency over the long term.
5. International Certifications
Jiangteng’s products have obtained 23 international certifications , including API 6D, ATEX/IECEx, SIL3, and RCC-M (nuclear power) , ensuring compliance with EU and North American standards and facilitating smooth export customs clearance.
Support from Key Technologies and Processes
|
Manufacturing Highlights |
Tangible Benefits |
|
Integrated high-temperature compression molding with fluoroplastic lining |
Liner adhesion exceeds 99.9%; resistant to detachment and provides long-lasting corrosion resistance |
|
5-axis simultaneous machining + laser cladding |
Component precision reaches± 0.005 mm; enhanced surface wear resistance and extended service life |
|
Dual-seal redundancy design |
Auxiliary seal remains functional if the primary seal fails, doubling safety |
|
Rigorous material selection and aging tests |
Material stability ensured at the source; suitable for long-term operation in harsh environments |
|
Modular customization |
Supports flexible combinations of valve bodies, seals, control methods, and more |
Product Specifications
|
Rotary Valve |
|||
|
Unloading capacity |
300kg/h-200m³/h |
||
|
Caliber |
100-1200mm (Round/Rquare opening customizable) |
||
|
Motor power |
0.75-11kw |
||
|
Impeller speed |
8-43r/min (Variable speed drive) |
||
|
Material |
Carbon steel/Cast iron/Cast steel/Stainless steel |
||
|
Drive configuration |
Direct-drive/Chain-drive |
||
|
Number of blades |
6-bay/8-bay/Multi-bay with airlock |
||
|
Work pressure |
≤5KPa(Customizable high-voltage type≤0.6Mpa) |
||
|
High-temperature resistance range |
Standard type |
High-temperature resistant type |
High-temperature customization type |
|
≤120℃ |
≤300 ℃ |
≤650 ℃ |
|
|

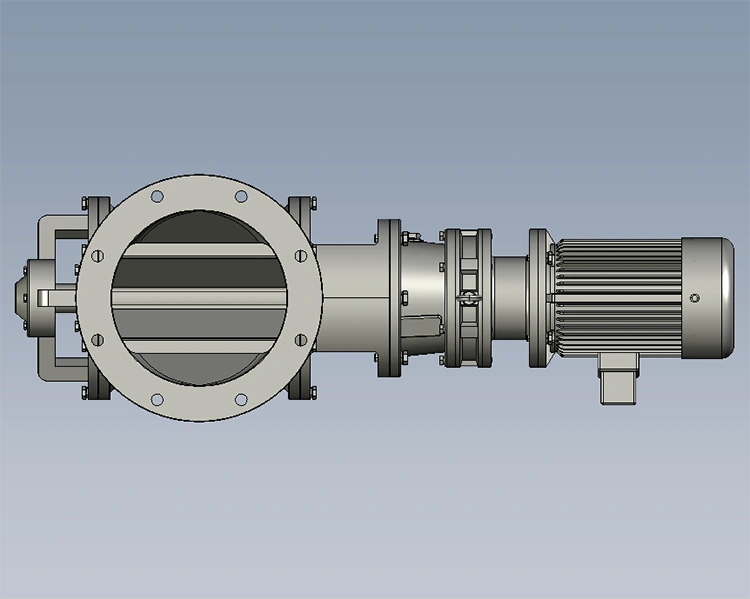

YJDA TYPE |
|||||||||
|
Model |
A |
B |
C |
E |
F |
M |
H |
h |
φ |
|
YJD02 |
240 |
200 |
150 |
650 |
420 |
122.5 |
225 |
12 |
9 |
|
YJD04 |
260 |
230 |
180 |
758 |
526 |
140 |
280 |
15 |
11 |
|
YJD06 |
300 |
250 |
200 |
778 |
536 |
150 |
300 |
15 |
11 |
|
YJD08 |
300 |
270 |
220 |
798 |
546 |
160 |
320 |
18 |
11 |
|
YJD10 |
320 |
290 |
240 |
880 |
628 |
170 |
340 |
18 |
13 |
|
YJD12 |
340 |
310 |
260 |
900 |
638 |
180 |
360 |
18 |
13 |
|
YJD14 |
360 |
330 |
280 |
920 |
648 |
190 |
380 |
20 |
17 |
|
YJD16 |
400 |
350 |
300 |
960 |
678 |
200 |
400 |
20 |
17 |
|
YJD18 |
400 |
370 |
320 |
980 |
688 |
220 |
440 |
22 |
17 |
|
YJD20 |
420 |
390 |
340 |
1000 |
698 |
230 |
450 |
22 |
17 |
|
YJD26 |
500 |
450 |
400 |
1150 |
740 |
260 |
520 |
24 |
17 |
|
YJD30 |
600 |
490 |
440 |
1190 |
755 |
280 |
600 |
24 |
17 |
|
|
|||||||||
|
Model |
A |
B |
C |
E |
F |
M |
H |
h |
φ |
|
300×450 |
440 |
395 |
300 |
1120 |
690 |
225 |
450 |
20 |
12- φ 18 |
|
300×460 |
400 |
360 |
300 |
1090 |
680 |
230 |
460 |
20 |
12- φ 18 |
|
300×500 |
400 |
360 |
300 |
1090 |
680 |
300 |
500 |
20 |
12- φ 18 |
|
400×600 |
550 |
500 |
400 |
1300 |
960 |
300 |
600 |
20 |
12- φ 18 |
|
400×600 |
530 |
480 |
400 |
1400 |
1000 |
300 |
600 |
25 |
12- φ 18 |
|
500×680 |
630 |
585 |
500 |
1510 |
1100 |
340 |
680 |
25 |
12- φ 18 |
|
YJDB TYPE |
|||||||||
|
Model |
φ A |
φ B |
φ C |
E |
F |
M |
H |
h |
φ |
|
YJD02 |
250 |
210 |
150 |
650 |
420 |
122.5 |
225 |
12 |
9 |
|
YJD04 |
280 |
240 |
180 |
758 |
526 |
140 |
280 |
15 |
11 |
|
YJD06 |
300 |
260 |
200 |
778 |
536 |
150 |
300 |
15 |
11 |
|
YJD08 |
320 |
280 |
220 |
798 |
546 |
160 |
320 |
18 |
11 |
|
YJD10 |
340 |
300 |
240 |
880 |
628 |
170 |
340 |
18 |
13 |
|
YJD12 |
360 |
320 |
260 |
900 |
638 |
180 |
360 |
18 |
13 |
|
YJD14 |
380 |
340 |
280 |
920 |
648 |
190 |
380 |
20 |
17 |
|
YJD16 |
400 |
360 |
300 |
960 |
678 |
200 |
400 |
20 |
17 |
|
YJD18 |
420 |
380 |
320 |
980 |
688 |
220 |
440 |
22 |
17 |
|
YJD20 |
440 |
400 |
340 |
1000 |
698 |
230 |
450 |
22 |
17 |
|
YJD26 |
500 |
460 |
400 |
1150 |
740 |
260 |
520 |
24 |
17 |
|
YJD30 |
600 |
500 |
440 |
1190 |
755 |
280 |
600 |
24 |
17 |
|
|
|||||||||
|
Model |
A |
B |
C |
E |
F |
M |
H |
h |
φ |
|
φ 300×450 |
440 |
390 |
300 |
1120 |
690 |
225 |
450 |
20 |
12- φ 22 |
|
φ 350×500 |
490 |
445 |
350 |
1200 |
700 |
250 |
500 |
25 |
12- φ 22 |
|
φ 400×500 |
520 |
480 |
400 |
1200 |
700 |
250 |
500 |
25 |
12- φ 22 |
|
φ 500×680 |
630 |
580 |
500 |
1500 |
1100 |
340 |
680 |
25 |
12- φ 22 |
Application Scenarios
|
Industries |
Applications |
Why our products are the right choice |
|
Chemical and Petrochemical |
Conveying of corrosive liquids and powders |
Available in Hastelloy or fluoropolymer-lined materials; resistant to strong acids and alkalis |
|
Energy and Nuclear Power |
Control of high-temperature, high-pressure steam and nuclear-grade media |
Withstands temperatures up to 750° C; RCC-M nuclear certification |
|
Water Treatment and Municipal |
Wastewater treatment and potable water control |
Compliant with NSF/ANSI 61 drinking water standards; corrosion-resistant |
|
Food and Pharmaceutical |
Conveying of food powders and liquid pharmaceuticals |
Surface roughness≤ 0.6 μ m; materials meet FDA requirements |
|
New Energy |
Conveying of lithium battery electrolytes and photovoltaic silicon materials |
Custom leak-proof design; compatible with automated production lines |
|
Metallurgy and Mining |
Regulation of high-temperature coal gas and ore dust |
Wear-resistant design; reduces flow resistance for significant energy savings |
FAQ
Q: How do I select the right rotary valve for dust collectors?
A: Simply provide parameters such as the medium, temperature, pressure, and flow rate to Jiangteng, and we will recommend the most suitable model. For extreme operating conditions (e.g., nuclear power or deep-sea applications), we recommend our series designed for universal compatibility.
Q: Do you offer customization?
A: We offer comprehensive customization options, including port size, material, sealing method, and control system.
Standard models are available for quick shipment, while our customization lead times are 35% shorter than the industry average.
Q: What about after-sales service and maintenance?
A: We maintain a quality traceability system with individual records for every valve and provide 24-hour technical support with prompt responses to standard inquiries.
We operate service centers across the Yangtze River Delta, Pearl River Delta, and Bohai Rim regions, as well as overseas, ensuring rapid on-site support when urgently needed.
Q: Is the equipment suitable for the international market?
A: Jiangteng rotary valves for dust collectors have obtained multiple international certifications and come with complete technical documentation, ensuring seamless export to the EU, North America, Southeast Asia, and other regions, as well as smooth customs clearance.
