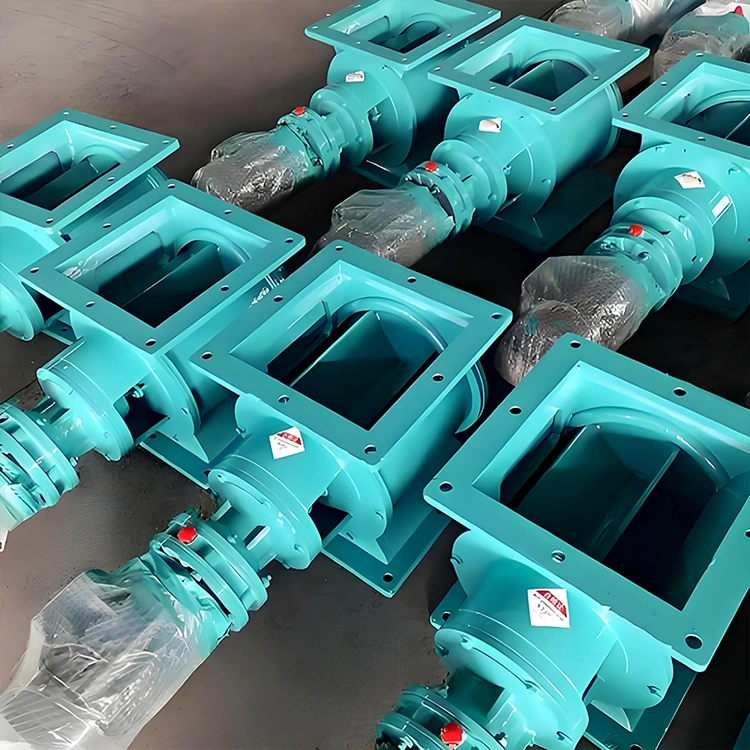

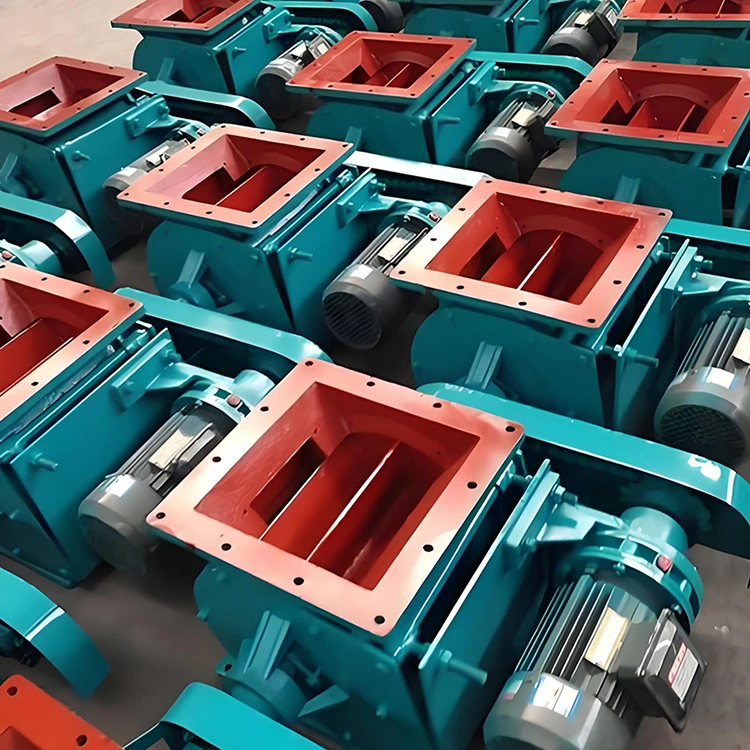

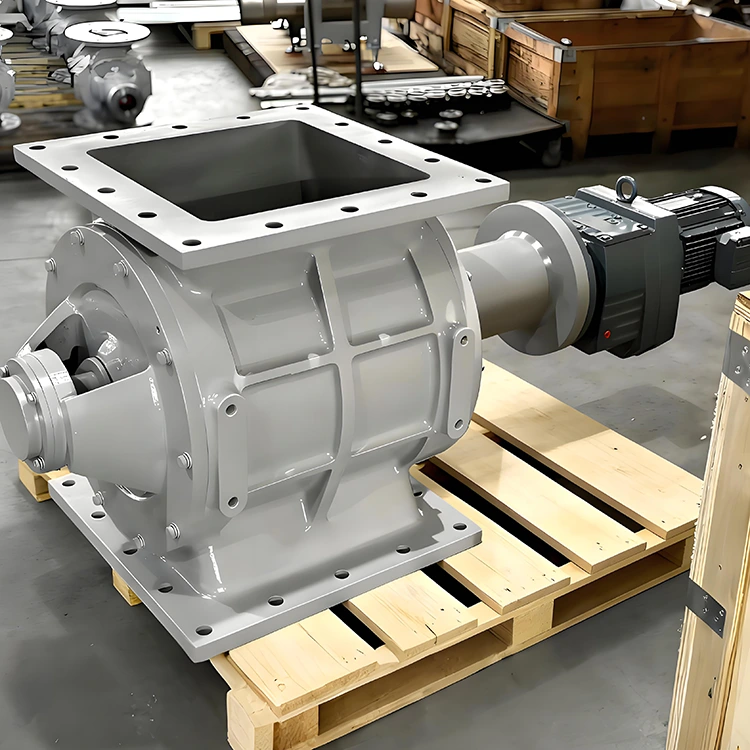

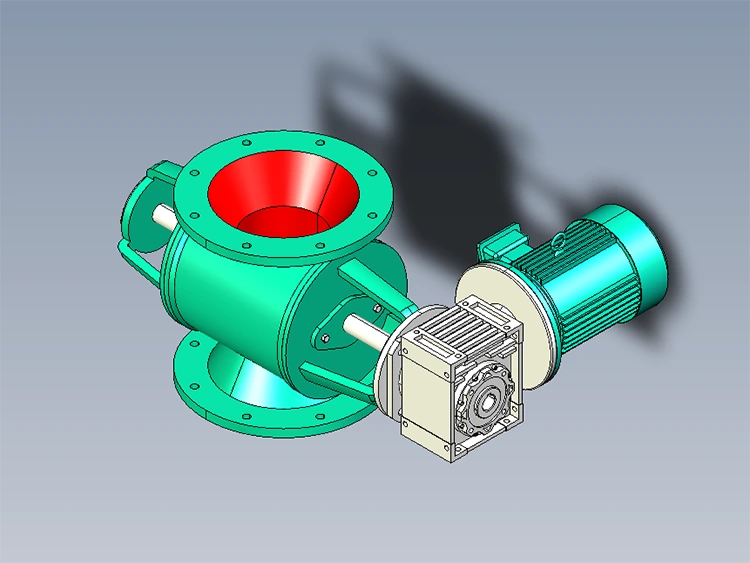

Powder Rotary Valve

Jiangteng is a professional manufacturer and supplier of powder rotary valves. Our equipment is meticulously designed and manufactured for the continuous conveying and air-locking of materials such as powders and granules; featuring a modular design, the units are easy to install and maintain. Please contact us for customized solutions.

Send Inquiry

Product Description

Using the powder rotary valves designed and manufactured by Jiangteng helps avoid issues such as air leakage, uneven discharge, and frequent maintenance in pneumatic conveying systems. We provide professional solutions that are wear-resistant, durable, and precisely customized.

Product Working Principle

The Powder Rotary Valve utilizes a rotor equipped with internal vanes rotating at a constant speed to continuously and precisely convey material from an upper hopper to a downstream pipeline or piece of equipment, while simultaneously maintaining airflow isolation.

Key operational stages include:

1. Uniform Filling : Material falls from the inlet into the pockets formed by the rotating vanes.

2. Sealed Conveying : As the rotor turns, the material-filled pockets form a sealed enclosure, acting as an airlock to prevent airflow between the inlet and outlet.

3. Steady Discharge : Material rotates to the discharge outlet and is steadily released under the influence of gravity or airflow.

4. Operational Benefits : Feeding rates can be easily and linearly controlled by adjusting the rotation speed via a variable frequency drive (VFD).

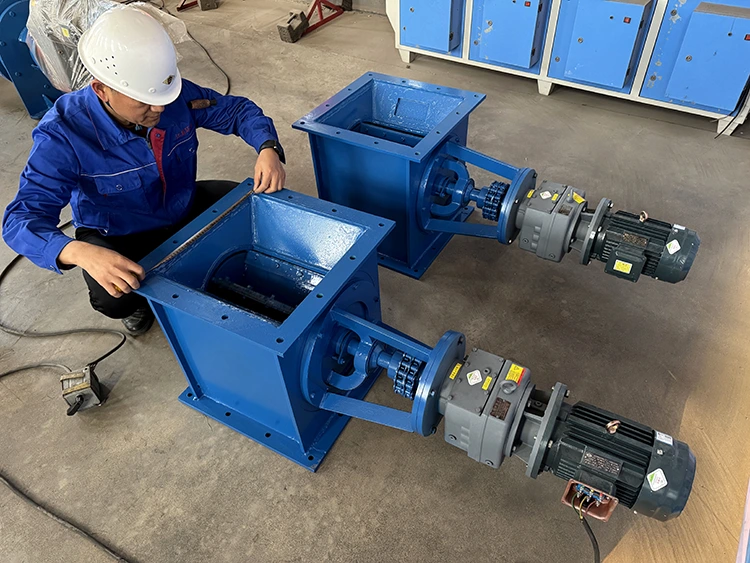

Powder Rotary Valve

Why Choose Jiangteng's Powder Rotary Valve?

Your Concerns	Our Solutions and Advantages
Rapid equipment wear due to material abrasion; short service life	Offers wear-resistant, reinforced options featuring carbide protection at critical points,ideal for handling materials such as cement and mineral powder.
System leakage (air or powder) affecting efficiency and cleanliness	Features a high-precision sealing design that ensures minimal leakage, maintains stable system pressure, and reduces both material waste and environmental pollution.
Challenging operating conditions (high temperature, corrosion, risk of material jamming)	Supports extensive customization, including options for high-temperature seals (up to 500° C), corrosion-resistant materials (such as 316L stainless steel), and anti-jamming designs (e.g., V-shaped inlets and chamfered rotor vanes).
Compliance with food or pharmaceutical industry standards required	Provides sanitary-grade (wash-down) models featuring polished internal surfaces (up to #400 finish) and a crevice-free design to facilitate thorough cleaning and inspection.
Complex maintenance and cumbersome parts replacement	Utilizes a modular design for easy disassembly; includes clear maintenance guidelines and standardized spare parts to simplify maintenance and save time.
Desire for automated, precise control	Comes standard with a variable frequency drive (VFD) interface for easy integration with your PLC system, enabling precise, remote, and automated control of material throughput.

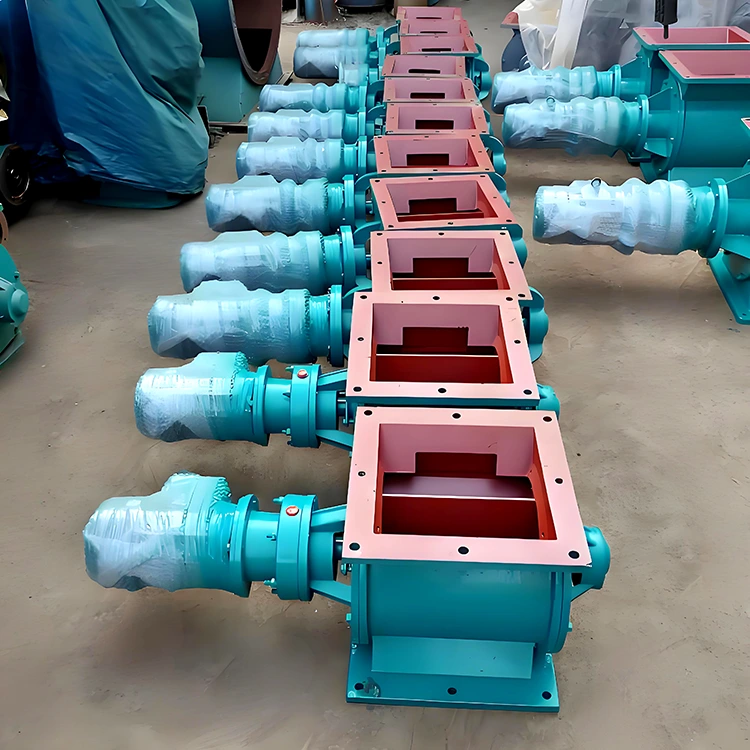

Powder Rotary Valve

Product Specifications

Rotary Valve
Unloading capacity	300kg/h-200m³/h
Caliber	100-1200mm (Round/Rquare opening customizable)
Motor power	0.75-11kw
Impeller speed	8-43r/min (Variable speed drive)
Material	Carbon steel/Cast iron/Cast steel/Stainless steel
Drive configuration	Direct-drive/Chain-drive
Number of blades	6-bay/8-bay/Multi-bay with airlock
Work pressure	≤5KPa(Customizable high-voltage type≤0.6Mpa)
High-temperature resistance range	Standard type	High-temperature resistant type	High-temperature customization type
	≤120℃	≤300 ℃	≤650 ℃

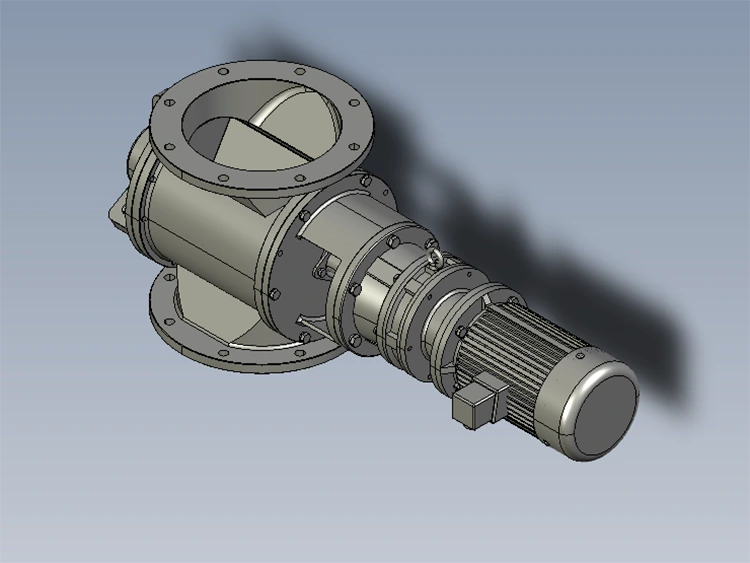

Powder Rotary Valve

YJDA TYPE
Model	A	B	C	E	F	M	H	h	φ
YJD02	240	200	150	650	420	122.5	225	12	9
YJD04	260	230	180	758	526	140	280	15	11
YJD06	300	250	200	778	536	150	300	15	11
YJD08	300	270	220	798	546	160	320	18	11
YJD10	320	290	240	880	628	170	340	18	13
YJD12	340	310	260	900	638	180	360	18	13
YJD14	360	330	280	920	648	190	380	20	17
YJD16	400	350	300	960	678	200	400	20	17
YJD18	400	370	320	980	688	220	440	22	17
YJD20	420	390	340	1000	698	230	450	22	17
YJD26	500	450	400	1150	740	260	520	24	17
YJD30	600	490	440	1190	755	280	600	24	17

Model	A	B	C	E	F	M	H	h	φ
300×450	440	395	300	1120	690	225	450	20	12- φ 18
300×460	400	360	300	1090	680	230	460	20	12- φ 18
300×500	400	360	300	1090	680	300	500	20	12- φ 18
400×600	550	500	400	1300	960	300	600	20	12- φ 18
400×600	530	480	400	1400	1000	300	600	25	12- φ 18
500×680	630	585	500	1510	1100	340	680	25	12- φ 18

YJDB TYPE
Model	φ A	φ B	φ C	E	F	M	H	h	φ
YJD02	250	210	150	650	420	122.5	225	12	9
YJD04	280	240	180	758	526	140	280	15	11
YJD06	300	260	200	778	536	150	300	15	11
YJD08	320	280	220	798	546	160	320	18	11
YJD10	340	300	240	880	628	170	340	18	13
YJD12	360	320	260	900	638	180	360	18	13
YJD14	380	340	280	920	648	190	380	20	17
YJD16	400	360	300	960	678	200	400	20	17
YJD18	420	380	320	980	688	220	440	22	17
YJD20	440	400	340	1000	698	230	450	22	17
YJD26	500	460	400	1150	740	260	520	24	17
YJD30	600	500	440	1190	755	280	600	24	17

Model	A	B	C	E	F	M	H	h	φ
φ 300×450	440	390	300	1120	690	225	450	20	12- φ 22
φ 350×500	490	445	350	1200	700	250	500	25	12- φ 22
φ 400×500	520	480	400	1200	700	250	500	25	12- φ 22
φ 500×680	630	580	500	1500	1100	340	680	25	12- φ 22

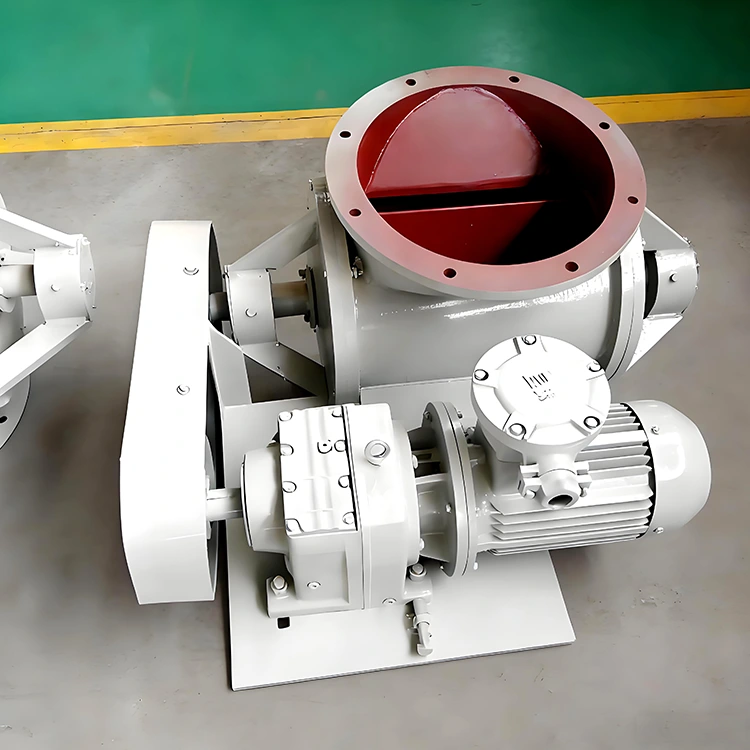

Powder Rotary Valve

Product Applications

Typical application scenarios : The powder rotary valve is suitable for feeding and discharging in pneumatic conveying systems, silo bottom discharge, dust collector hopper emptying, and metered feeding for packaging machines.

Common industries:

Chemicals/Plastics: Conveying PVC powder, resins, catalysts, etc., ensuring stable feed to reaction vessels.

Food/Pharmaceuticals: Conveying flour, sugar, milk powder, and pharmaceutical powders; compliant with strict hygiene standards.

Construction Materials/Metallurgy: Conveying cement, lime, pulverized coal, and mineral powder; capable of withstanding heavy wear.

Environmental Protection/Energy: Used for dust collector discharge, conveying lime powder for flue-gas desulfurization, biomass pellet feeding, etc.

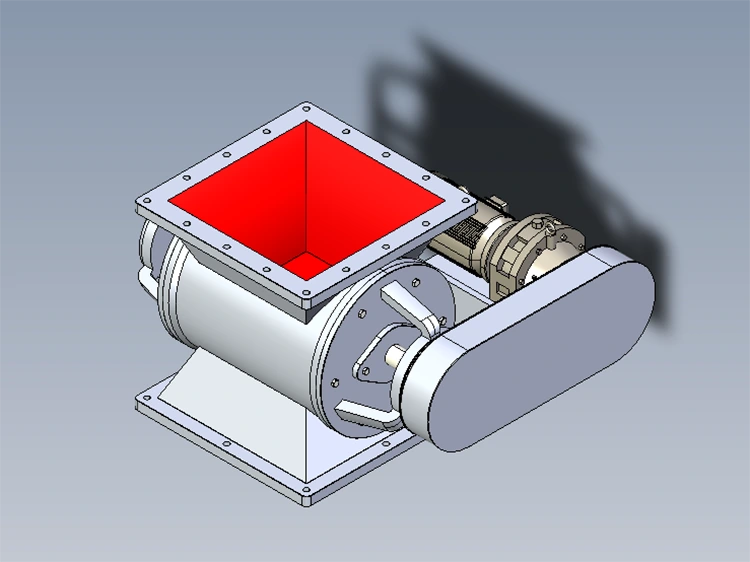

Powder Rotary Valve

FAQ

Q: How do I choose the right model for my factory?

A: It primarily depends on four factors:

Material characteristics: particle size, moisture content, abrasiveness, and corrosiveness

Operating conditions: temperature and pressure

Functional requirements: simple conveying, precise metering, or frequent cleaning installation space.

By providing these details, Jiangteng's engineers can offer free consultation to help you select the appropriate model.

Q: Will the valve jam if the material is slightly damp or prone to clumping?

A: For such materials, we utilize an anti-jam design featuring a unique V-shaped inlet and chamfered rotor blades.

Equipped with a venting function, the design effectively prevents material bridging and clogging, ensuring smooth operation.

Q: Is maintenance of the Powder Rotary Valve complex?

A: Routine maintenance is very simple. It mainly involves periodic checks (recommended every 3 – 6 months) of the gear reducer lubricant and seal wear, as well as clearing out any residual material adhering to the interior.

Q: Can it be used for bidirectional conveying?

A: Yes, it supports bidirectional sealing.

You simply need to ensure during installation that the motor's rotation direction aligns with your desired material flow direction.

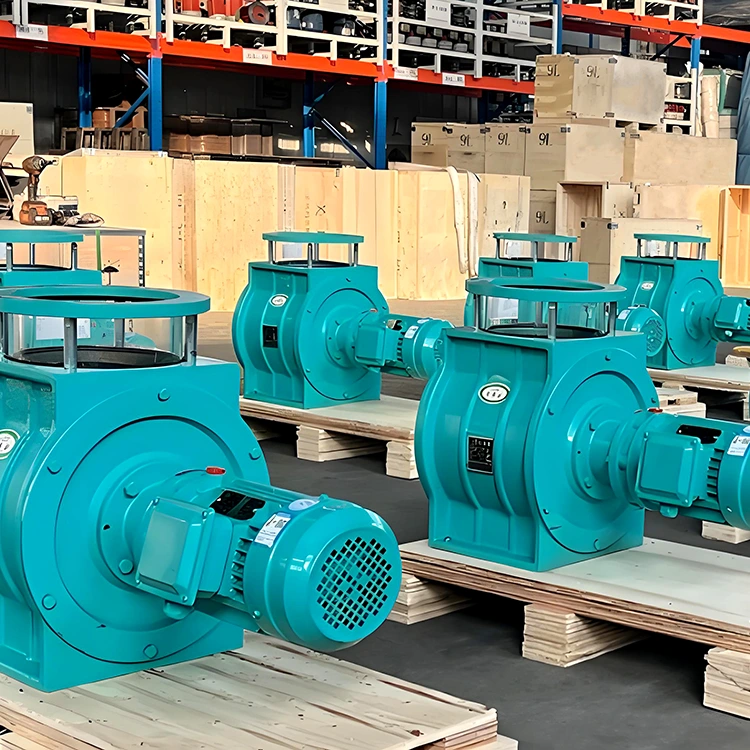

Powder Rotary Valve
