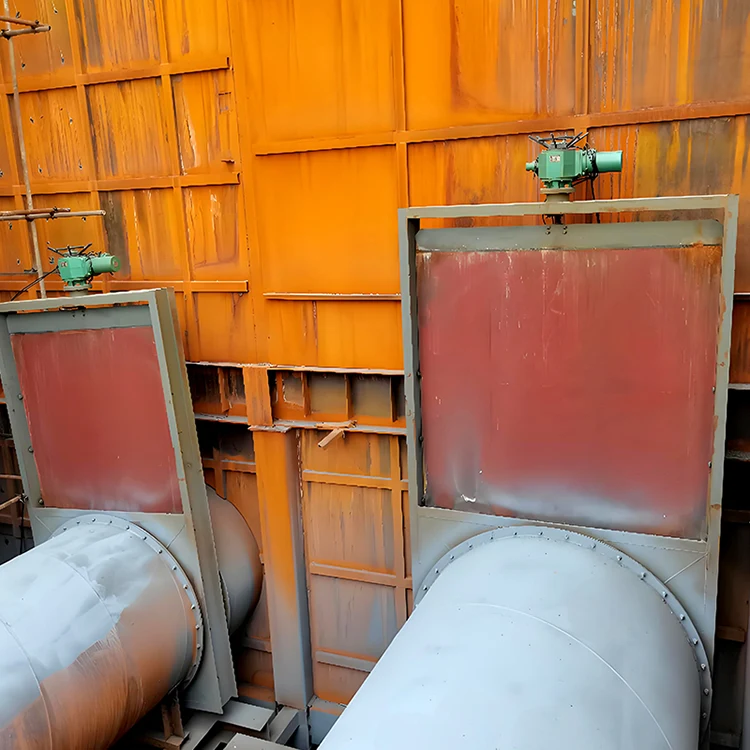

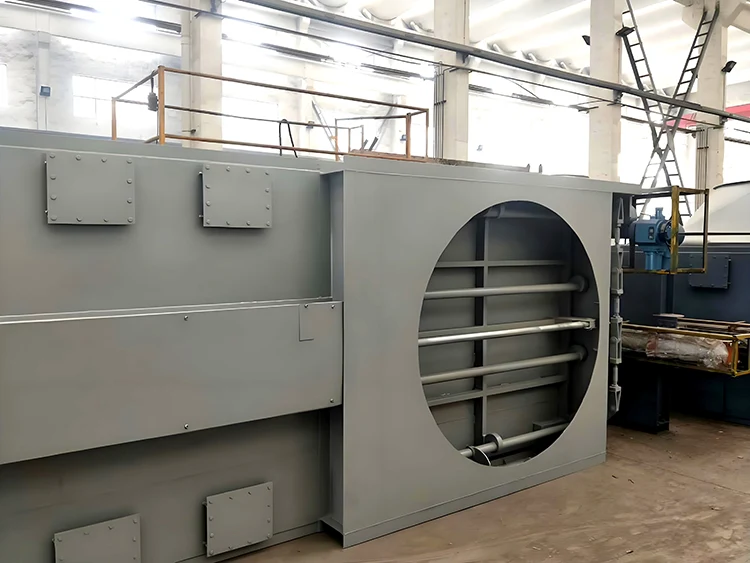

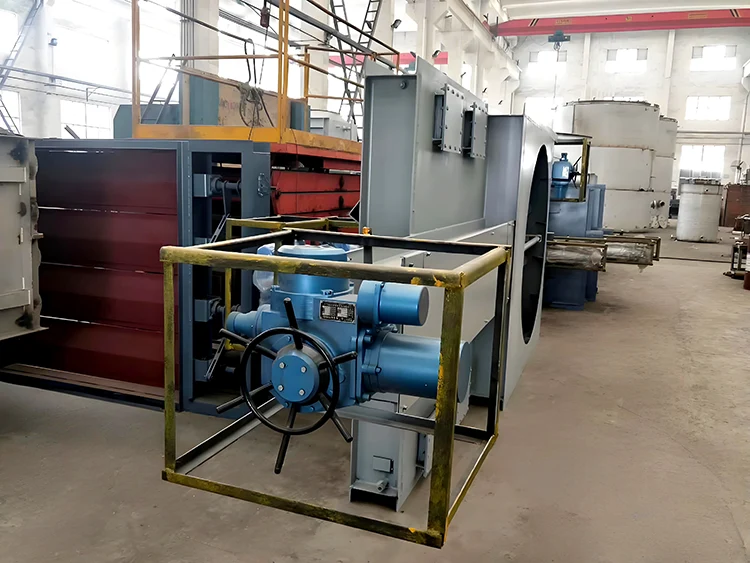

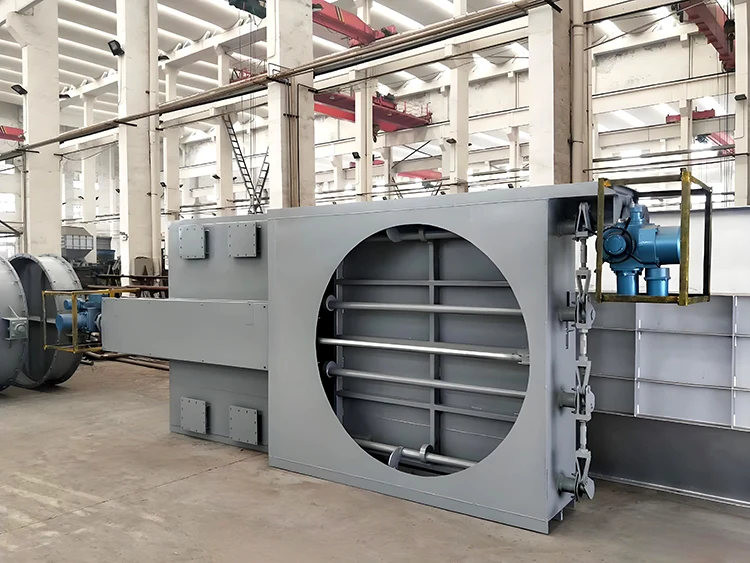

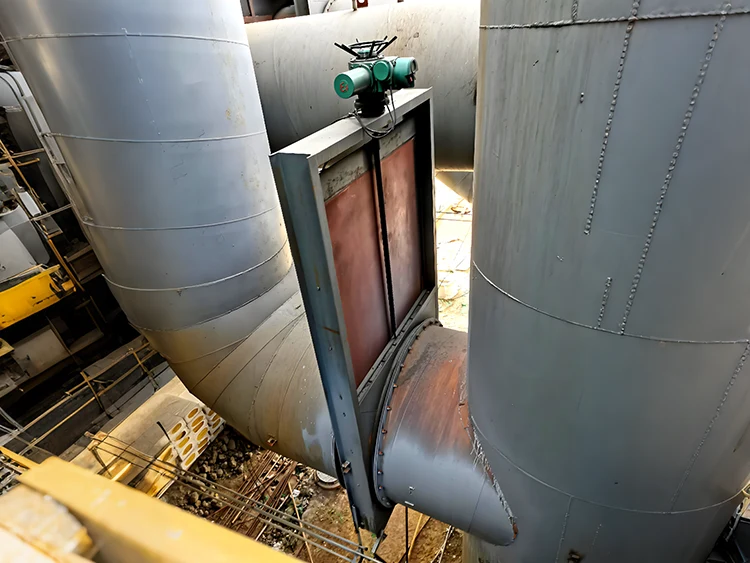

Electric Slide Gate Valve

Jiangteng’s Electric Slide Gate Valves are precise, reliable, and capable of intelligent control. Featuring durable and dependable sealing performance, they offer greater convenience and require less effort than manually operated models, thereby minimizing downtime and reducing overall operation and maintenance costs.

Product Features

Labor-Saving: Electric remote control replaces manual operation, allowing a single operator to manage the entire line of valves.

Zero Leakage: Available with either hard or soft sealing options, maintaining superior leak-tightness even under the most demanding operating conditions.

High Adaptability: Ensures stable operation across a wide range of environments—from extreme lows of -40°C to highs of 450°C, and from dusty atmospheres to corrosive slurries.

Easy Integration: Supports standard signal inputs, allowing for seamless integration into your existing DCS or PLC systems.

Long Service Life: Core components feature a wear-resistant, reinforced design, resulting in a low failure rate and exceptional durability.

Product Working Principle

1. Intuitive Operation

When your control system issues a command (such as a switching signal or a 4-20mA modulating signal), the electric actuator located at the top of the Electric Slide Gate Valve responds immediately.

The motor increases its torque via a gearbox, driving the valve stem to move the slide plate in a linear motion.

Opening: The slide plate rises completely, leaving the flow channel unobstructed and allowing the medium (powders, liquids, gases, etc.) to pass through smoothly.

Closing: The slide plate descends precisely to seat tightly against the valve seat's sealing surface, forming a robust barrier that completely cuts off the flow of the medium.

2. Operational Workflow

Your Control Command → Actuator Receives & Activates → Drives Slide Plate in Linear Motion → Valve Reaches Predetermined Opening Position → Feedback Signal Sent to Your System → Process Complete.

3. Intelligent Control

● Precise Positioning Control: Equipped with high-precision limit switches or encoders, ensuring precise control over the valve opening to meet your exacting requirements for flow regulation.

● Dual Safety Protection: The motor features both overload and thermal protection; it automatically shuts down upon encountering resistance, safeguarding both the valve and the actuator from damage.

● Real-time Status Feedback: Capable of outputting real-time data regarding valve opening position, open/close status, and fault signals, keeping you fully informed about your production processes.

Product Specifications

Why Choose Our Electric Slide Gate Valve?

As a direct manufacturer, Jiangteng specializes in providing pipeline control solutions designed to ensure long-term stable operation, minimize operational hassles, and boost efficiency:

1. Designed for Harsh Conditions

Our Electric Slide Gate Valve is specifically engineered for environments characterized by dust, high temperatures, corrosiveness, and abrasion—common in industries such as building materials, metallurgy, and chemicals.

The valve plate and sealing surfaces undergo specialized hardening treatments to prevent jamming, resulting in a service life that far exceeds that of standard valves.

2. Reliable Sealing

We offer a variety of sealing solutions: hard seals provide exceptional resistance to abrasion and high temperatures, while soft seals ensure zero leakage.

Jiangteng will recommend the optimal configuration tailored to your specific media (such as powders, wastewater, or flue gas), thereby fundamentally eliminating issues related to leakage and spillage.

3. Intelligent Control

Our equipment comes standard with intelligent electric actuators, enabling remote opening/closing, precise valve position adjustment, and real-time status feedback.

You can operate the valve with a single click from a central control room, monitoring its status in real-time to significantly reduce on-site operational risks and labor costs.

4. Robust and Durable

Jiangteng employs a modular design, ensuring that key components are easy to disassemble and reassemble.

The use of high-quality materials and precision manufacturing guarantees stability during extended periods of continuous operation, allowing for longer maintenance intervals and lower overall operating costs.

How Do We Ensure the Quality of Our Electric Slide Gate Valves?

1. Structural Design

Jiangteng employs a robust, integrated design for our Electric Slide Gate Valves, thereby minimizing installation space requirements.

The slide plate guiding structure has been optimized to ensure a precise trajectory, effectively preventing jamming—even under conditions involving the accumulation of powdery materials.

The valve body features a smooth flow channel, which minimizes media residue and reduces flow resistance.

2. Materials and Manufacturing Processes

Valve Body: Available in a choice of cast iron, carbon steel, or 304/316L stainless steel, offering optimal protection against corrosive media.

Slide Plate and Sealing Components: Key sealing elements are fabricated from materials such as wear-resistant alloys and reinforced fluororubber; these components undergo precision grinding to ensure long-term sealing integrity.

Manufacturing: Critical production stages utilize CNC machining centers to guarantee component interchangeability and assembly consistency.

3. Actuation Mechanism

We strictly select either high-quality actuators from trusted brand partners or our own proprietary, high-performance actuators, featuring an ingress protection rating of up to IP67.

A manual override mechanism (handwheel) is included as a standard feature, enabling emergency operation in the event of a power failure to ensure uninterrupted production safety.

In Which Industries and Applications Can Electric Slide Gate Valves Be Utilized?

Building Materials Industry: Conveying of raw cement meal and pulverized coal; discharge control for bucket elevators.

Challenges Addressed: High dust environments; rapid abrasive wear.

Metallurgical Industry: Pulverized coal injection for blast furnaces; dust removal systems; ash and slag handling.

Challenges Addressed: High temperatures; abrasive particle erosion.

Chemical Industry: Shut-off control for powder coatings, resin granules, and acidic/alkaline materials.

Challenges Addressed: Corrosion; explosion-proof requirements.

Power & Environmental Protection: Flue gas desulfurization and denitrification systems; fly ash handling; wastewater treatment.

Challenges Addressed: Slurry corrosion; scaling/fouling.

Grain & Coal Handling: Storage silo loading and unloading; conveyor line distribution.

Challenges Addressed: Prevention of jamming/clogging; stringent sealing requirements.

FAQ

Q1: What are the advantages of the electric slide gate valve compared to the pneumatic version?

A1: The electric valve does not require the installation of compressed air piping, making installation simpler—particularly suitable for remote or decentralized locations.

It offers higher control precision and eliminates the risk of air leakage, resulting in more stable operation; this makes it especially suitable for applications requiring precise adjustment of the valve opening.

Q2: Is the valve durable under conditions of frequent start-stops or when operating in a semi-open state?

A2: Yes. Our Electric Slide Gate Valve features a reinforced design specifically engineered for frequent-cycling applications, with particular attention paid to the guide rails and sealing surfaces.

However, since prolonged operation in a semi-open, modulating state can accelerate wear, we recommend opting for a specialized modulating-type gate plate design when precise flow regulation is required.

Q3: How do you ensure the valve's sealing integrity?

A3: First, we recommend the most suitable combination of sealing materials based on your specific medium (e.g., wear-resistant hard alloy against hard alloy, or fluororubber against stainless steel).

Second, every valve undergoes rigorous pressure testing for sealing integrity prior to shipment to ensure zero leakage.

Q4: Do you support non-standard customization? What is the lead time?

A4: We offer comprehensive customization capabilities—a core advantage of our direct-from-manufacturer supply model.

We can customize non-standard bore sizes, special materials, uniquely shaped connection flanges, specific voltage/signal requirements, and more.

For standard models, the lead time is 7–15 days; for special customizations, the timeline is negotiated based on complexity. We are committed to doing our utmost to meet your project schedule requirements.

Q5: What points should be noted regarding installation and subsequent maintenance?

A5: We provide detailed installation guides and wiring diagrams.

During installation, we recommend ensuring that the pipeline is securely supported and that the connecting flanges are aligned in parallel.

Routine maintenance is very simple: periodically check the operating status of the actuator and clean any accumulated dust from the exterior of the valve body. The sealing components are consumable parts; they can be replaced as needed after prolonged use, and we are able to supply the necessary spare parts.
