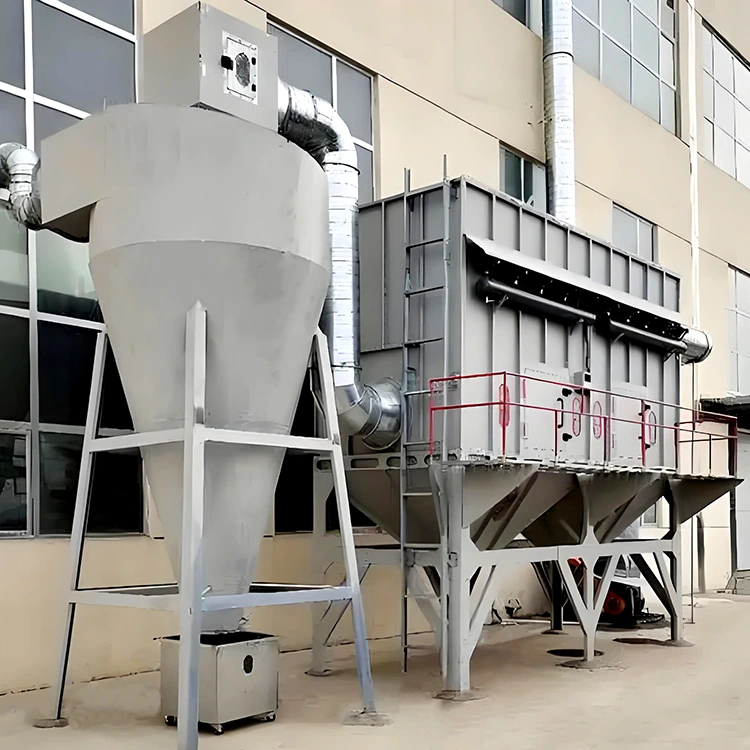

Cyclone Dust Collector

Are you looking to customize a Cyclone Dust Collector that is better suited to your specific operating conditions? Choose Jiangteng as your manufacturer; we will provide you with highly efficient dust control solutions, along with comprehensive technical support services.

Why Choose a Cyclone Dust Collector?

A cyclone dust collector is a dry-type dust removal device that utilizes centrifugal force to achieve gas-solid separation. Characterized by its simple structure and stable operation, it is particularly well-suited for handling industrial dust characterized by high concentrations, high temperatures, and large particle sizes. With its low maintenance costs, it stands as the preferred solution for dust pretreatment across a wide range of industries.

Compared to similar equipment, our product series offers greater completeness and adaptability:

Standard Model: Meets high-efficiency dust removal requirements for general-purpose applications.

High-Efficiency Model: Features an airflow design optimized for finer dust particles, thereby enhancing separation efficiency.

Multi-Tube Model: Capable of processing large air volumes, making it ideal for large-scale production lines.

Bypass Model: Offers superior capture capabilities for ultrafine dust particles.

Fully Customizable Series: We provide personalized design and manufacturing services tailored to your specific airflow volume, dust characteristics, installation space constraints, and emission standards.

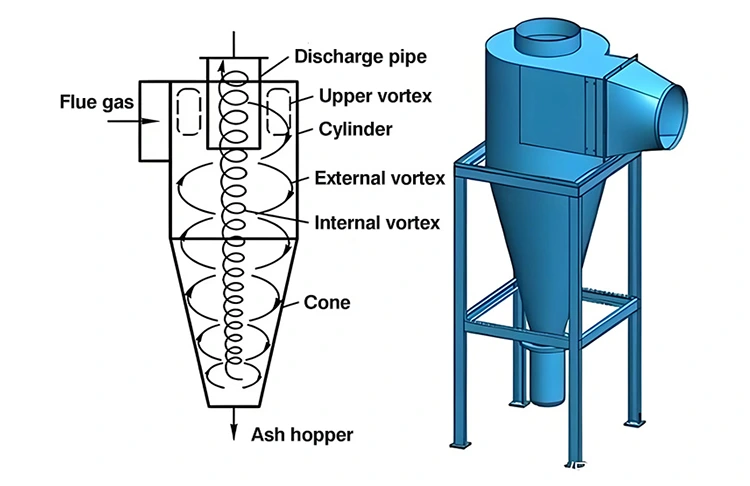

Operating Principle: How Does Centrifugal Force Efficiently Separate Dust?

The equipment's dust removal process is divided into four distinct stages:

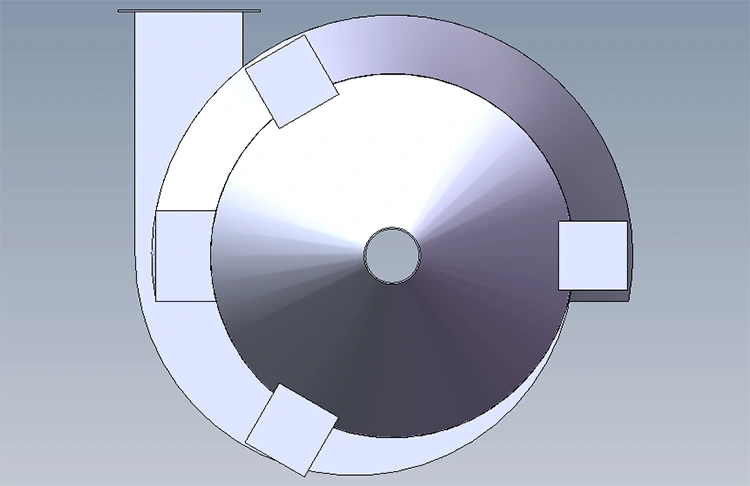

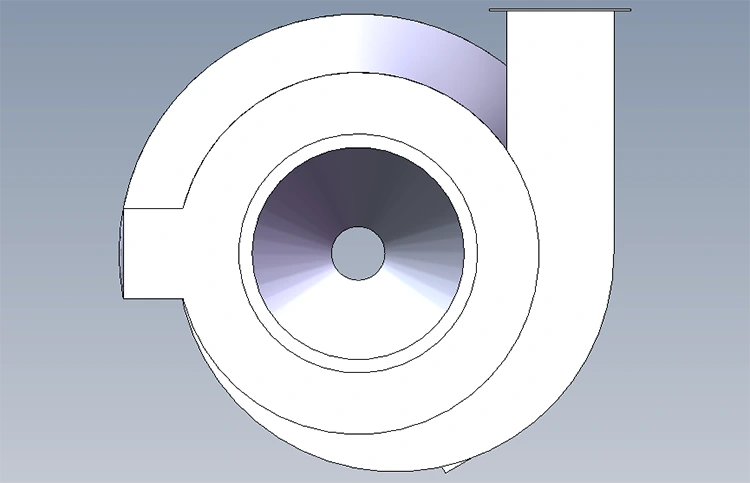

1. High-Speed Intake: Dust-laden gas enters the cylindrical chamber tangentially, generating a high-velocity rotating airflow.

2. Centrifugal Separation: Under the influence of powerful centrifugal forces, dust particles are flung outward toward the chamber walls, thereby separating from the gas stream.

3. Centralized Collection: The separated dust slides down along the chamber walls and accumulates in the hopper located at the bottom.

4. Clean Exhaust: The purified gas flows upward through the center of the chamber and is discharged through the top outlet.

▷ Jiangteng's Professional Technical Optimization: Through advanced fluid dynamics simulations, we have precisely optimized the geometry of the air inlet and the proportions of the cylindrical chamber. This optimization ensures a more stable airflow and generates stronger centrifugal forces, thereby significantly enhancing separation efficiency—particularly improving the capture capability for fine particles compared to traditional designs.

Key Parameters and Selection Support

Selecting the right model is key to efficient operation. The following lists the parameters for a selection of standard models; however, the vast majority of projects require customization based on your specific operating conditions.

*Note: Dust removal efficiency is based on tests involving dust particles with a diameter of ≥10μm. For finer dust or special operating conditions (such as highly corrosive or ultra-high-temperature environments), we offer material upgrades (e.g., ceramic lining, titanium alloy) and customized system solutions.

Unsure how to select the right model? Simply provide us with basic information—such as your dust characteristics, airflow volume, and temperature—and our technical team will provide you with precise selection recommendations and a tailored solution, completely free of charge.

Our Unique Advantages

In addition to the inherent benefits of cyclone dust collectors—such as the absence of filter media and high-temperature resistance—we leverage technical innovation and advanced manufacturing processes to ensure our equipment delivers even greater value to you:

1. Higher Efficiency: Through optimized design, Jiangteng boosts dust removal efficiency by 3–5% compared to standard industry products. This results in lower dust emissions, easier compliance with environmental acceptance standards, and the potential for recovering a greater quantity of raw materials.

2. Extended Service Life: For components prone to wear, we employ wear-resistant ceramic linings or hardfacing techniques. This extends the equipment's service life by 2–3 times, significantly reducing replacement and downtime costs caused by abrasion.

3. Lower Long-Term Costs: Our dust collectors feature a low-resistance structural design that reduces system fan energy consumption by 10–15%, saving you substantial electricity costs over the long term.

4. Intelligent Ash Discharge: Our products are equipped with an intelligently controlled ash discharge mechanism. This prevents blockages and air leakage, ensuring continuous and stable equipment operation while minimizing the need for manual intervention.

5. Direct-from-Source Supply: With no intermediaries involved, we deliver directly from our factory to your project site. While guaranteeing superior quality, we offer highly competitive pricing along with comprehensive technical support—covering everything from pre-sales consultation to after-sales service.

Which Industries Do We Serve with Dust Removal Solutions?

Our cyclone dust collectors are currently serving numerous industries worldwide, helping clients achieve clean production:

Building Materials: Dust recovery and control in the production of cement, aggregates, and ceramics.

Metallurgy: Pre-treatment of blast furnace gas and metal smelting flue gas.

Chemicals/Plastics: Dust collection during the processing of raw materials and finished products.

Power Generation: Flue gas pre-dedusting for coal-fired boilers and biomass power plants.

Mining: High-concentration dust control for processes such as crushing and screening.

FAQ

Q: Can a cyclone dust collector handle very fine dust?

A: For particles larger than 10μm, the efficiency is excellent (>92%). For fine dust particles between 5–10μm, it offers a certain level of efficiency.

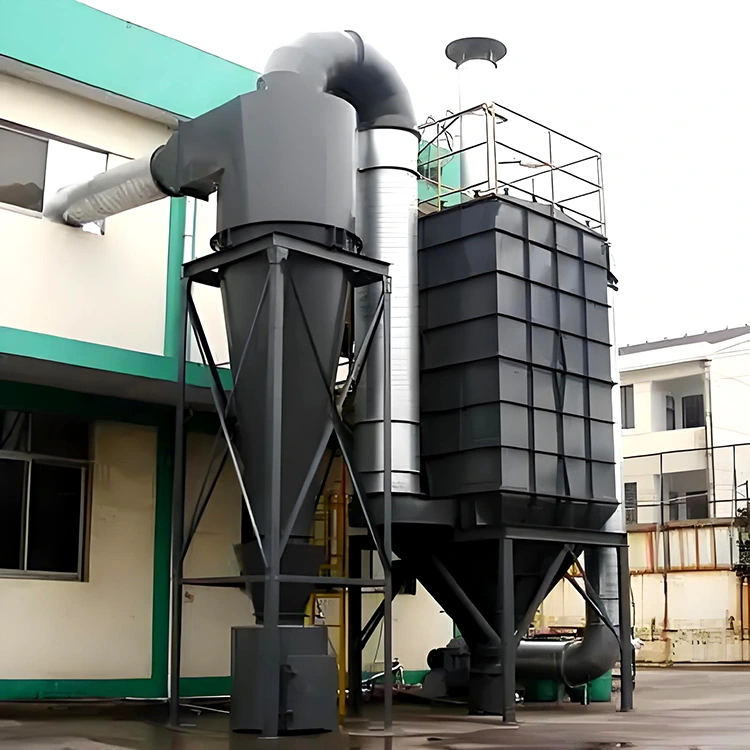

If you need to handle even finer dust, we recommend a combined system consisting of a cyclone dust collector paired with a baghouse filter; we can provide a complete system design solution for this purpose.

Q: Are the operating and maintenance costs high?

A: They are very economical. Its primary advantage lies in its low operating costs: there is no need to replace filter media, power consumption is minimal (limited solely to the fan), and maintenance is simple—requiring only periodic checks of the dust discharge and cleaning mechanisms.

Q: How long does the process take from initial consultation to installation?

A: Standard models are available in stock, while the design cycle for custom-engineered solutions is approximately 5–7 business days. Installation is guided by our professional team; for standard equipment, installation and commissioning can typically be completed within one week.

Q: Do you offer a warranty?

A: Yes, we provide a one-year warranty on the complete unit, along with additional warranty coverage for core wear parts. Upon expiration of the warranty period, we offer lifetime paid maintenance services.

Get Your Tailored Solution

Every dust control challenge is unique. We do not believe in one-size-fits-all solutions.

Tell us your requirements, and you will receive:

Complimentary technical consultation and equipment selection advice.

A customized solution tailored to your specific operating environment (including equipment specifications and layout recommendations).

A clear, transparent quotation and production lead time.

Ongoing support for installation, operation, and maintenance.

Contact Us Today to Achieve Cleaner Production:

Online Inquiry: Contact us instantly via our website.

Technical Hotline: +86-13291393567

Email: jiangtenghuanbao3@gmail.com (Send us your preliminary requirements to receive a written proposal).

Factory Visit: You are welcome to schedule an on-site tour to witness our manufacturing processes and quality standards firsthand.

Let us help you resolve your dust-related issues once and for all—backed by our professional equipment and sincere service!
